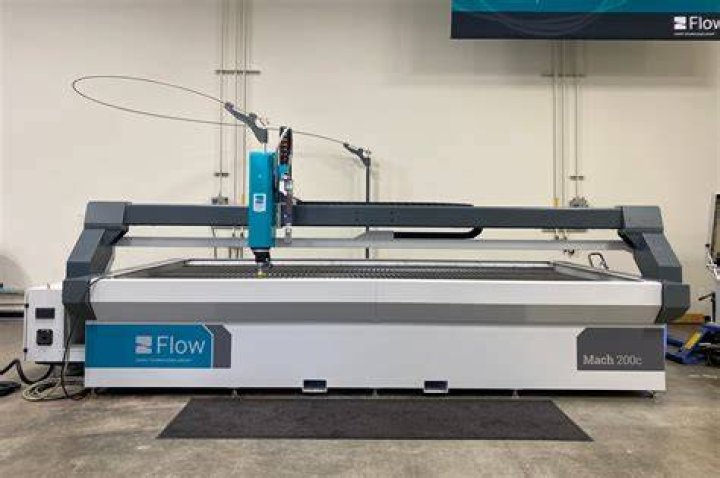

Who owns Flow waterjet?

Shape Technologies Group, Inc.
Flow is proud to be a Shape Technologies Group Company. Shape Technologies Group, Inc. (SHAPE) delivers innovative manufacturing process solutions to customers spanning 100 countries and a broad array of industries.

How does a flow jet work?

All waterjets follow the same principle of using high pressure water focused into a beam by a nozzle. An intensifier pump creates pressure by using hydraulic oil to move a piston forcing the water through a tiny hole. The water then travels along the high pressure tubing to the nozzle of the waterjet.

How does a waterjet boat work?

Jet-powered boats use the same propulsion system used in personal watercrafts (PWCs) that mates an inboard engine to a jet pump. The pump draws water from an intake in the bottom of the boat and shoots a high-velocity stream of water from a nozzle at the back of the boat to propel it forward.

Whats better water jet or plasma?

As material thickness increases, the cut will be less clean as the plasma struggles to melt through all of the material without producing unwanted slag. The water jet is generally considered the more accurate machine and will produce higher quality cuts across a wider range of materials and thicknesses.

What is the difference between laser cutting and waterjet cutting?

A laser cutting machine can engrave as well as cut material, while waterjet only allows cutting. Waterjet cutting partially enables 3D material cutting (though it is not designed for this purpose), while laser cutting doesn’t.

Is waterjet cutting cheaper than laser cutting?

Plasma operating cost would again be the lowest, and is typically estimated at approximately $15/hour. The cost of laser would be slightly higher, typically estimated at around $20/hour. Waterjet is usually considered to be the most expensive, typically estimated at about $30/hour.

How much water does waterjet use?

It costs approximate one gallon water per minute during process depending on the cutting head orifice size. In addition, 3 to 5 gallons per minute are used to cool the waterjet pump, and the water could be recycled.

What goes into a waterjet?

What goes into a waterjet. In the nozzle it is mixed with the high-pressure water to form the water/abrasive stream that cuts through the material. The abrasive flows at a rate of between one-half and one pound per minute (0.2 and 0.5 kg/minute) and is usually gravity fed.

How does waterjet cutting work?

How waterjet cutting works. How does waterjet cutting work? Abrasive Waterjet Cutting is essentially an accelerated erosion process. Ultra-high pressure water is fired through a ruby or diamond orifice into a “mixing chamber” which creates a vacuum and draws garnet sand into the water stream.

What are the different types of water jet cutting machines?

There are two different types of CNC waterjet machines, pure and abrasive. Pure waterjet machines primarily cut with a high pressurized stream of water compared to the abrasive waterjet machine that combines abrasive substances, and the high pressurized stream of water to cut harder materials. Pure waterjet machines are ideal for plastics
