Which antennas are used at VHF and UHF?
Andrew Ramirez Which antennas are used at VHF and UHF?
The ground waves used for broadcasting at low frequencies must be vertically polarized, so large vertical monopole antennas are used for broadcasting in the MF, LF, and VLF bands. Small monopoles are used as nondirectional antennas on portable radios in the HF, VHF, and UHF bands.
Which channels are UHF and VHF?
In the US and Canada, the VHF television band occupies frequencies between 54 and 216 MHz and the UHF band between 470 and 890 MHz. In general, VHF channels are numbered 2 to 13 and UHF channels 14 to 51.

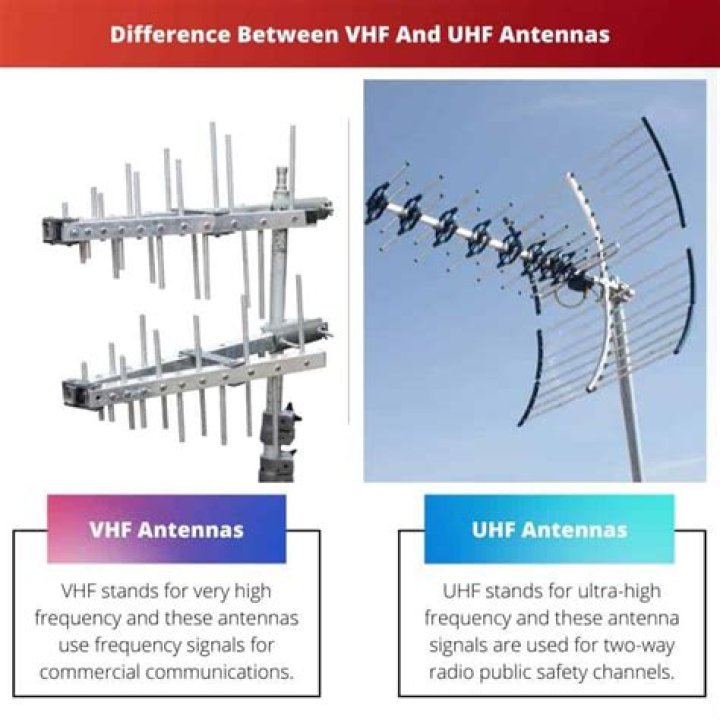

What is difference between UHF and VHF antenna?
The wavelengths of UHF (ultra-high frequency) are short so antennas for UHF two-way radios are typically small and stubby in size. VHF requires a slightly larger antenna to improve its range and how far it will travel. VHF antennas can receive channels 2 through 13 while UHF antennas can receive channels 14 through 83.
What kind of antenna is used for VHF communications?
The VHF antenna P/N 2448-88-00 is an airborne communication antenna capable of transmitting and receiving signals in the VHF band from 118 to 156 MHz (extended) including VDL mode 2. Designed for high-performance and wide-body aircraft, the VHF antenna has a compact design for reduced drag.
Which antenna is UHF?
Antennas With Visible Elements If you see both V-shaped elements and a smaller cluster of straight elements on the same antenna, it receives both signals. The simplest indoor antenna is the basic rabbit ears design, which receives VHF. A loop-shaped antenna, whether it’s arranged horizontally or vertically, is for UHF.
What channels are on UHF?
RF channels 2 through 13 are considered VHF, and RF channels 14 through 51 are considered UHF. In order to pick up the channels, the antenna has to be designed for the correct frequency range.
What is a VHF TV antenna?
antennas are designed to improve the reception of VHF signals, which are used by television stations and government agencies.
Can my antenna be used as a UHF/VHF antenna?
For the most part, all of our antennas can function as UHF/VHF antennas, but their success may be limited especially if you are trying to get channels on the very low end of VHF (channels 2-6).
Do OTA TV antennas capture UHF or UHF channels?
While most OTA TV antennas on the market are designed to capture both frequencies, some antennas – especially certain ‘flat’ indoor antennas – are optimized primarily to capture UHF channels.
What are VHF and UHF TV frequencies?
What are VHF and UHF TV Frequencies? In the US and Canada, the VHF television band occupies frequencies between 54 and 216 MHz and the UHF band between 470 and 890 MHz. In general, VHF channels are numbered 2 to 13 and UHF channels 14 to 51.
Do panel antennas get low VHF channels?
Some manufactures claim these panel antennas get VHF and UHF, but in reality such antennas very likely won’t get low VHF channels. Remember, Channel 2’s wavelength is around 18 feet. A UHF antenna for indoors works well, however, in urban areas where TV stations are nearby.
