What is the use of plummer block?

A pillow block bearing (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. The assembly consists of a mounting block which houses a bearing.

What are the types of plummer block?

SKF manufacture three different types of plummer block housings namely, the ‘SNA’, ‘SN’ and ‘SD’ plummer blocks. SNA plummer blocks are designed for use with bearings mounted on adapter sleeves or with a cylindrical bore.

What is the difference between plummer block and pillow block?

Pillow blocks are used for more lightweight applications and plummer blocks are used to transfer high power and support heavy industrial loads. Plummer blocks and pillow blocks are designed to safely mount a bearing which lets its outer ring to not move but allows the inner ring to rotate.

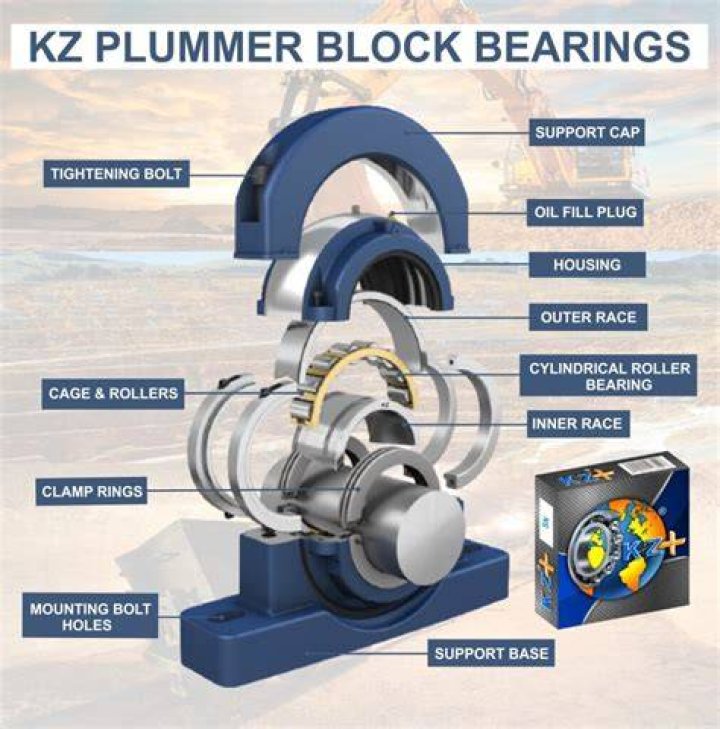

What is plummer block parts?

A plummer block consists of a cast iron Block Base, gunmetal bearing bottom & top halves, a cast iron cap and two mild steel bolts. It is made in two halves to provide easy placing and removal of the shaft in and from bearing.

How many bolts are used in Plummer block?

Stand-out features of plummer blocks mounting: Alignment markings for quick and easy alignment. Markings for mounting with four fastening bolts. Markings for additional dowel pin.

What does a pillow block allow a bearing to do?

Pillow block bearings are actually housings that have a bearing fitted into them. They are usually mounted in cleaner environments and are not meant to bear higher loads. The main application is to mount bearings safely with a stationary outer ring and a rotating inner ring.

How do you install a pillow block?

1. 1) Check and Clean the Shaft.
2. 2) Position the Bearings on the Shaft.
3. 3) Lightly Bolt the Housing to the Mounting Structure.
4. 4) Establish the Final Mounting Position.
5. 5) Securely Bolt the Housing to the Mounting Structure.
6. 6) Ensure the Shaft can Move Axially.
7. 7) Tighten Both Collar Set Screws.
8. 8) Expansion Unit*

What is difference between Sn and SNL plummer block?

SNL plummer block housings are fully interchangeable with the earlier SNH housings. Their dimensions con- form to ISO 113:1994. SNL plummer block housings are prim- arily intended for self-aligning ball bear- ings, spherical roller bearings and CARB bearings. The housings are designed on a “building block” principle.

What are plummer block housings used for?

Plummer block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron. The housings have a re-lubrication facility and can be used with either oil or grease lubrication.

What type of bearings are available in plummer blocks?

Plummer Blocks have mounted type bearings available in flanged & upright styles in different inch & metric sizes. Plummer Blocks are designed to support shafts.

What is a splitsplit plummer block?

Split plummer block housings available on the market are mainly intended for self-align- ing ball bearings, spherical roller bearings and CARB toroidal roller bearings of ISO Dimen- sion Series 02, 03, 22, 23 and 32. They can often be fitted with a number of different seals.

What are SNL plummer block housings?

SNL plummer block housings are primarily intended for self-aligning ball bearings, spher- ical roller bearings and CARB toroidal roller bearings. The housings are designed on the ”building block” principle to enable a wider choice of bearings and seals as well as a variety of mounting and lubrication methods. A building block system
