What is the size of scFv?
Leah Mitchell What is the size of scFv?
27 kDa
A typical scFv has a molecular weight of 27 kDa which is comparable in size to a FP (e.g., eGFP: 30 kDa) and will therefore, in favorable cases, not interfere with the function of the protein to which it is fused.
What is scFv used for?
To date, generation of single-chain fragment variable (scFv) has become an established technique used to produce a completely functional antigen-binding fragment in bacterial systems. The advances in antibody engineering have now facilitated a more efficient and generally applicable method to produce Fv fragments.
How big is a nanobody?
A VHH antibody corresponds to the variable region of a heavy chain of a camelid antibody and has a very small size of around 15 kDa – hence the name “nanobody”.
How do you detect scFv?
Captured antigen is detected by binding a purified TrxA–scFv. The purified scFv can bind the antigen only if it binds a site that is not occupied by the yeast surface displayed-scFv. Bound antigen is then detected by adding mouse anti-TrxA MAb conjugated to FITC.
Is scFv glycosylated?
MS Analysis of Tryptic Peptides and Glycopeptides. scFv-Fc proteins have a conserved N-linked glycosylation site in the CH2 domain of the Fc.
Is scFv an antibody?

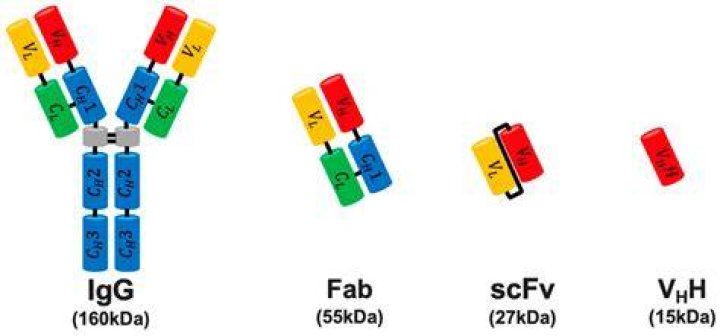

scFVs are a type of recombinant antibody. They are ~25 kDa single polypeptides that contain the variable light chain (VL) and variable heavy chain (VH) of an antibody.
What is the difference between antibody and nanobody?
The main difference between nanobodies and conventional antibodies has to do with their structure and their domains. Conventional antibodies have two variable domains, called VH and VL, which offer each other stability and binding specificity. Lacking the VL domain also means nanobodies have a hydrophilic side.
What is a Vhh nanobody?
A VHH antibody (or nanobody) is the antigen binding fragment of heavy chain only antibodies. Discovered nearly 25 years ago, they have been investigated for their use in clinical therapeutics and immunodiagnostics, and more recently for environmental monitoring applications.
How do you make a scFv?
In order to get scFv antibody fragments, mRNA is first isolated from hybridoma (or spleen, lymph cells, and bone morrow) followed by reverse transcribed into cDNA to serve as a template for antibody genes amplification (PCR).
Is a nanobody a monoclonal antibody?
Nanobodies are often compared to poly- and monoclonal antibodies and antibody fragments, and the methods used to produce these. Nanobodies are easier to produce cheaply in bulk than polyclonal antibodies. Furthermore, they are stable in a wide range of temperatures, remaining functional at temperatures as high as 80°C.
What is nanobody technology?
NANOBODY® molecules are a novel class of proprietary therapeutic proteins based on single-domain antibody fragments that contain the unique structural and functional properties of naturally-occurring heavy chain only antibodies.
What is the molecular weight of scFv?
A typical scFv has a molecular weight of 27 kDa which is comparable in size to a FP (e.g., eGFP: 30 kDa) and will therefore, in favorable cases, not interfere with the function of the protein to which it is fused.
How big is the 3f12e7 scFv?
The 3F12E7 scFv exhibited a single band with an apparent molecular mass between 28 and 38 kDa in gel electrophoresis under denaturing and reducing conditions (Fig. 1 d), which is within the expected size for the monomeric form of this protein. The binding of the affinity-purified 3F12E7 scFv to FGF2 was confirmed by ELISA analysis (Fig. 1 e).
What does scFv stand for?
A single-chain fragment variable (scFv) is a recombinant antibody and has great potential for use in many fields such as research, diagnostic and clinical applications. The molecular weight is approximately 28 kDa.
How can I express scFv in mammalian cells?
It can also be expressed in mammalian systems (i.e., HEK293 cells) through transient transfection. Sino Biological is capable of scFv antibody fragment generation using either production systems, depending on customer’s preference. A suitable purification tag is typically added to the C-terminus of the antibody scFv fragment protein.
