What is the purpose of a pressure differential valve in a brake system?

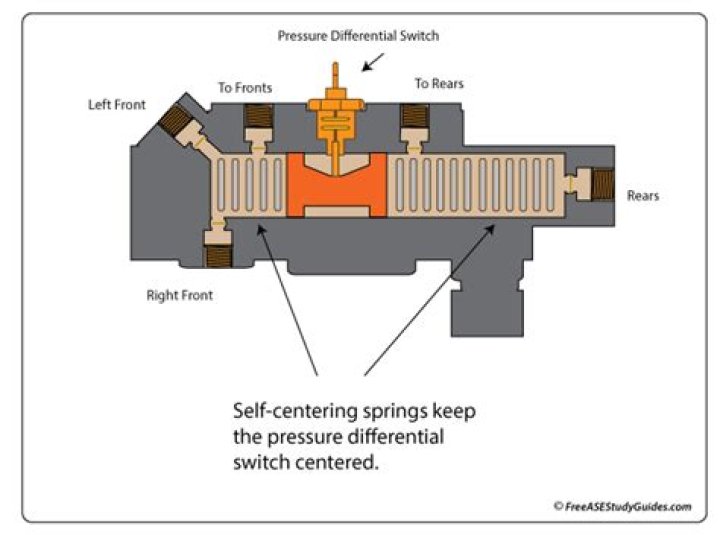

A pressure differential valve monitors any pressure difference between the two separate hydraulic brake circuits. If there is a moderate leak anywhere in the system, it will illuminate the brake warning light on the instrument panel.

What would happen if the pressure differential valve was faulty?

Rear wheels lock up Since the proportioning valve decreases the pressure sent to the rear brakes, the main symptom the valve is going bad is the rear wheels locking up when the brakes are applied. Furthermore, the wheels will lock up more easily on wet surfaces. The rear brakes may feel touchy when applied even gently.

Can you clean a brake proportioning valve?

If it’s installed in the system, I would just run fresh brake fluid through it. If it’s off the truck, then clean it with brake cleaner. You can re-bleed the proportioning valve later, if you want to introduce fresh fluid into it.

How do you test a pressure differential valve?

Starts here0:53Pressure Differential test – YouTubeYouTube

How do I reset my differential pressure switch?

If you force hard pressure on the pedal and open a line on the system, you can reset the switch. If you have to take the line off, you’ll have to push the switch back to center.

How do you know if you have a bad proportioning valve?

First, you might notice your car is taking a nose dive when you suddenly apply the brakes. Then your car may not stop fast enough. If your rear wheels lock up easily, especially when you drive on wet surfaces, it is a good sign your proportioning valve is going bad.

How do you clean a proportioning valve?

Starts here18:52How-To Clean Your Proportioning Valve + Mod for adding disc brakesYouTube

How do you know if your brake proportioning valve is bad?

What problems can a bad proportioning valve cause?

A faulty brake proportioning valve could increase your vehicle’s braking distance, as it might reduce the pressure from the rear brakes too much. Note that the symptoms of a bad brake proportioning valve may also point to damage to other components, such as the rear brake circuit, brake caliper, or wheel cylinder.

How do you replace brake pressure switch?

Carefully thread the replacement anti-lock brake pressure switch into place. Start the replacement switch by hand, paying close attention not to cross thread the switch. Tighten the switch as far as possible by hand, then snug the switch into place with the appropriate wrench.

What is normal automotive brake line pressure?

Typical full-lock operating pressures on conventional OEM-style automotive hydraulic-brake systems are 900–1,000 psi with manual brakes and 1,400-plus psi with power-assisted brakes. To check the pressure, you’ll need a simple brake-pressure gauge.

How exactly does a brake proportioning valve work?

The brake proportioning valve is a metering device that equalizes the pressure between the front and rear brakes. The valve stops the flow, or pressure of brake fluid to the rear drum brakes during every heavy braking or emergency stops; otherwise, the rear brakes lock up and skid, receiving too much pressure from the master cylinder.

What is a brake proportional valve?

Brake Proportioning Valves. The proportioning valve is installed on vehicle’s with front disc, rear drum brake systems. They provide balanced braking during sudden, hard braking by restricting fluid pressure to the rear brakes. This helps prevent rear wheel lock up as the vehicle’s weight is shifted toward the front wheels.
