What is the process of compression Moulding?

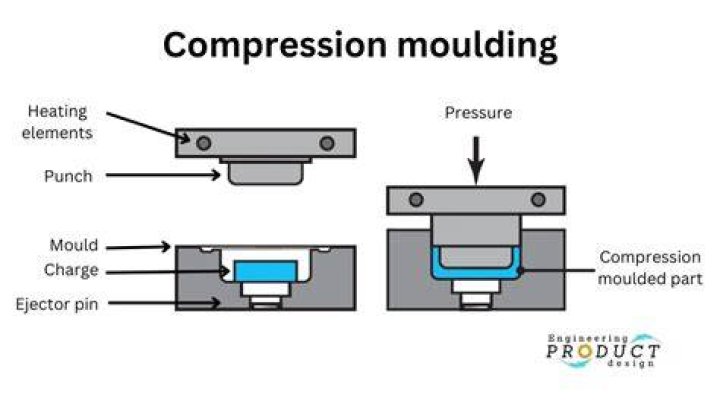

Compression molding is the process of molding in which a preheated polymer is placed into an open, heated mold cavity. The mold is then closed with a top plug and compressed in order to have the material contact all areas of the mold.

What products does compression Moulding make?

Compression molding products

• Car tyres / rubber tyres.
• Rubber gaskets or seals.
• Handles.
• Electrical components.
• Automotive parts.
• Other various polymer matrix composite parts.

What are three advantages of compression molding?

Advantages of Compression Molding

• Seamless Parts. Unlike injection molding, compression molds don’t create unwanted flow lines or knitting.
• Lower Costs. Rubber compression molding is a great cost-effective option.
• High-Volume Manufacturing.
• Larger Parts.
• Additional Material Options.

What is rubber compression moulding?

Compression molding is a tried-and-true method of manufacturing simple rubber parts. The process is akin to waffle-making — a given amount of uncured rubber is placed into a mold cavity, which is then closed and heated. When the parts have cured, they are removed from the mold.

What is breathing in compression moulding?

Compression Molding Cycle Load the material into the cavities. 3. Close the mold completely; or before closing it, interject a brief “breathe cycle” by opening the mold slightly to release any air and gases trapped in the molding compound.

What is compression molding in composite?

Compression molding is a closed-mold composite manufacturing process that uses matched metal molds with the application of external pressure. The combination of heat and pressure produces a composite part with low void content and high fiber volume fraction—a near net shape finished component.

What type of composites can be produced by this compression moulding process?

Examples of composites that are commonly processed by compression moulding include thermosetting prepregs, fibre-reinforced thermoplastic “organosheets”, moulding compounds such as sheet moulding compound (SMC) and chopped thermoplastic tapes.

What are common raw materials for compression molding?

Two types of raw plastics materials are most often used for compression molding: Thermoset plastics – Four kinds of thermosets are polyurethane, unsaturated polyesters, phenolic and silicones. Thermoplastics – Four common types are polyethylene, polypropylene, polystyrene, and acrylics.

Why is compression Moulding suited thermosets?

It is very easy to change the material and colour. Therefore the compression moulding is ideal for small batch sizes. In combination with pressure and temperatures of 130 to 180° C, thermosets react as a chemical process, thus generating the high forces of resistance typical for this material.

What are the limitations of compression Moulding?

Disadvantages of Compression Molding Process: The repetitive nature of the compression molding process makes the molds to be damaged. This molding process is not suitable for making complex parts. The labor cost is higher in this molding process. The wastage of thermoset plastics is more compared to thermoplastics.

What are Compression Moulding Thermoplastic composites?

When compression moulding thermoplastic composites we typically start with a pre-consolidated fibre-reinforced polymer “organosheet”. This organosheet is pre-heated and then transferred to a pre-heated tool, where the part is formed and allowed to consolidate before being removed from the tool.

What is compcompression moulding and how does it work?

Compression moulding is a composite manufacturing process normally used to produce composite components in high production volume such as automotive components. There are two types of compression moulding process, i.e., cold compression and hot compression moldings.

What is a schematic diagram of compression molding?

A schematic diagram of compression molding is shown as Fig. 5 A. Compression molding can be used to fabricate both thermoplastics and thermosets and requires heating up of raw materials (in the form of powders or pellets) in the mold. For thermoplastics, the temperature should be higher than Tg during the forming process.

What is a compression molding press?

A compression molding press consists of two heated platens. The lower platen contains a recess for the plate or sheet that is charged with resin powder or granules. The platens are then pressed together and heated to consolidate the resin.
