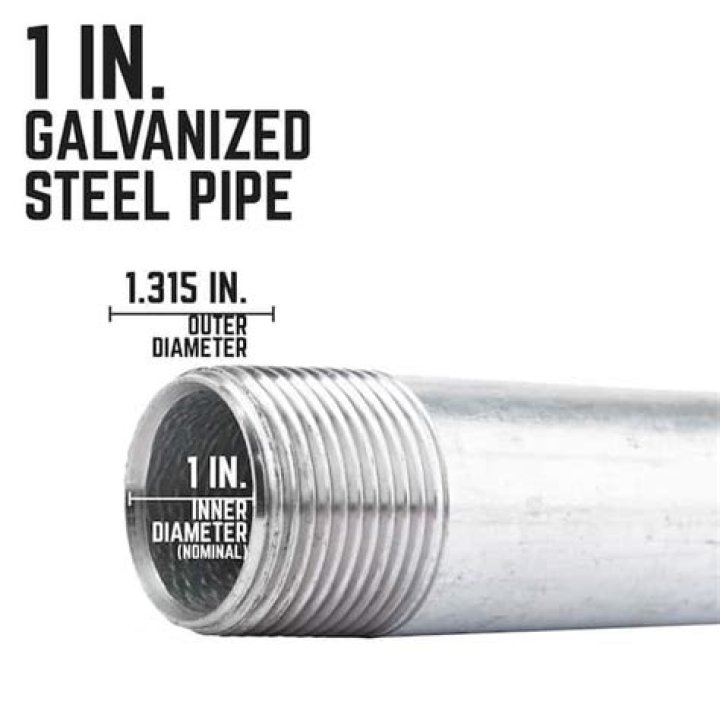

What is the outside diameter of 1 inch galvanized pipe?
Robert Harper What is the outside diameter of 1 inch galvanized pipe?
| Product Name | Outer Diameter (Inches) | #/FT |
|---|---|---|
| 1″ SCH 40 Galvanized Steel Pipe | 1.315 | 1.679 |
| 1-1/4″ SCH 10 Galvanized Steel Pipe | 1.66 | 1.806 |
| 1-1/4″ SCH 40 Galvanized Steel Pipe | 1.66 | 2.273 |
| 1-1/4″ SCH 80 Galvanized Steel Pipe | 1.66 | 2.997 |
What is the OD of 1 inch pipe?
1.315
Pipe Size Chart
| PIPE SCHEDULES WALL THICKNESS (Inches) | ||
|---|---|---|
| Nominal | O.D. Inches | 80s & E.H. |
| 3/4 | 1.050 | .154 |
| 1 | 1.315 | .179 |
| 1 1/4 | 1.660 | .191 |
Is Xxs the same as XXH?
Accordingly, pipes were made with double extra strong (XXS) or double extra heavy (XXH) walls, while the standardized outside diameters are unchanged.
What is the inside diameter of 1 inch galvanized pipe?
The OD of 1/2-inch galvanized pipe is about 7/8-inch and so is 1/2-inch PVC. 3/4-inch pipe measures 1-1/16 inches, 1-inch measures 1 5/16 inches and 1 1/4 inches measures 1 5/8 inches.
How strong is 1 inch galvanized pipe?
The mechanical properties of this type of pipe varies according to the method of manufacturing. However, the typical yield strength is around 30,000 psi.
Is galvanized water pipe measured by ID or OD?
Round down the actual inside diameter to the next smaller nominal size. This is necessary for pipe with an inside diameter of two inches or less. Typical nominal sizes in inches are 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 and 2 1/2.
What is the outside diameter of 1 inch PVC pipe?
| PVC and CPVC Pipes – Schedule 40 | ||
|---|---|---|
| Nominal Pipe Size (inches) | Outside Diameter (inches) | Minimum Wall Thickness (inches) |
| 1/2 | 0.840 | 0.109 |
| 3/4 | 1.050 | 0.113 |
| 1 | 1.315 | 0.133 |
Is Sch80 the same as XH?
Extra Heavy (XH) is used to describe the minimum wall thicknesses for pipe and some pipe fittings. For sizes up to 8″, XH is the same wall thickness as schedule 80. Although the “XH” description is not the most accurate, it is still very commonly used and implies the same as schedule 80.
How many PSI can galvanized pipe hold?
Since there are no specifications for this type of pipe, galvanizing is usually performed per ASTM A123. The mechanical properties of this type of pipe varies according to the method of manufacturing. However, the typical yield strength is around 30,000 psi.
