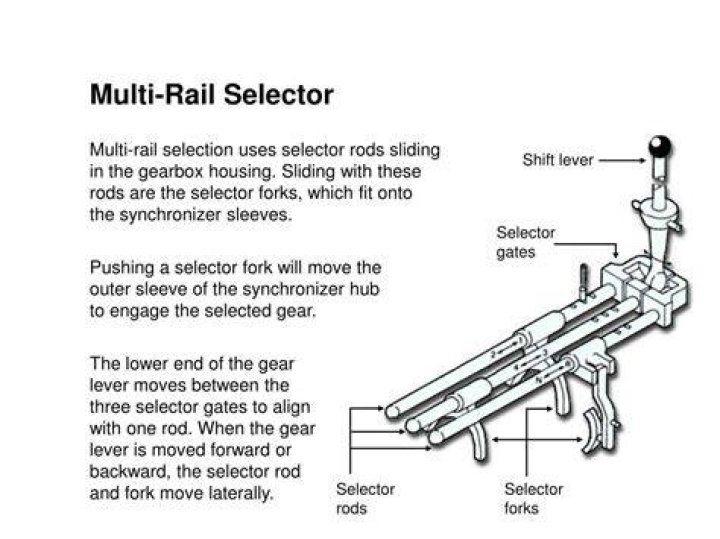

What is the operation of a simple interlock mechanism for a multi rail gear selector?

In most interlock mechanisms, movement of any one of the shift rails from its neutral position actuates a locking component which in turn is coupled to block any axial movement of the other shift rails until the one shift rail has been returned to a neutral position.

How does a gear selector mechanism work?

It connects to an auxiliary lever that is directly coupled to the selector mechanism. The shaft is supported by a series of bushes or bearings. To operate the gears the driver turns the knob to the left or to the right, causing the shaft to rotate in its bushes and to move the auxiliary lever laterally.

What is the purpose of interlocking mechanism in a gearbox?

An interlocking mechanism for preventing the double meshing of a transmission, which is constituted by using a rotary lock drum to produce a reliable locking action and can be excellently adapted to various transmissions.

What is the purpose of the shifter interlock mechanism manual transmission?

As a safety feature, the shift interlock prevents a driver from switching to reverse while driving. The car must come to a full stop before the driver can switch gears. The shift interlock solenoid is part of this safety mechanism.

What is a gearbox selector?

The gear selector inhibitor prevents accidental changing between different gear positions in an automatic gearbox. There are two different types of gear selector inhibitor – mechanical and automatic.

Which of the following is the need of the gearbox Mcq?

Which of the following is the need of the gearbox? Explanation: The purpose of the gearbox is to give means so that the torque can be varied as required between the engine and the road wheels.

What is a gear mechanism?

Gears are mechanisms that mesh together via teeth and are used to transmit rotary motion from one shaft to another. They are typically mounted, or connected to other parts, via a shaft or base.

How does the interlock work in a gearbox?

There are various gear shift pattern exists in the vehicles, which depends upon the number of gears in the gearbox. To avoid this, a gear selector Interlock Mechanism is designed, which ensure the movement of gear selector lever to a required predetermined position and safe driving.

What is interlock mechanism?

An interlock is a feature that makes the state of two mechanisms or functions mutually dependent. In most applications, an interlock is used to help prevent a machine from harming its operator or damaging itself by preventing one element from changing state due to the state of another element, and vice versa.

What is gear selector interlock mechanism?

To avoid this, a gear selector Interlock Mechanism is designed, which ensure the movement of gear selector lever to a required predetermined position and safe driving. In this paper a six speed manual transmission with second type of gear shift pattern is considered for interlock mechanism design.

What are the parts of interlocking mechanism?

In the interlocking mechanism, fork-operation members and fork-fixing members LP1 to LP4 are coupled to a plurality of forks for changing the gears, and are fitted to a plurality of lock drum grooves of a lock drum LD that is rotatably supported.

How does the shift lock work on an automatic transmission?

SHIFT INTERLOCK SYSTEM The shift lock system is designed to ensure the proper operation of the automatic transmission. The driver must depress the brake pedal in order to move the gear selector from Park to any other range. In addition, the ignition key cannot be turned to the Lock position and

How do you select the gear on a gear selector?

In this case the gear select position is determined by moving the gear selector lever to left and right and a suitable interlock mechanism is provided for the reverse gear selection. This gear select pattern is commonly used in automotive and commercial vehicles.
