What is the NRTL model good for?
Sarah Parker What is the NRTL model good for?
The model provides good representation of experimental equilibrium data for strongly non-ideal mixtures and partially immiscible systems [6]. One of the main disadvantages of the NRTL model is the strong correlation between the two energy interaction parameters (a12 and a21).
What is full form of NRTL model?

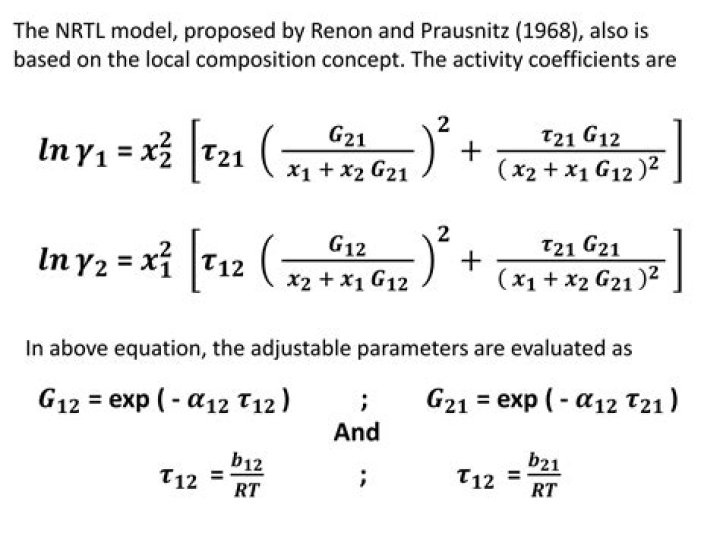

The non-random two-liquid model (abbreviated NRTL model) is an activity coefficient model that correlates the activity coefficients of a compound with its mole fractions in the liquid phase concerned. It is frequently applied in the field of chemical engineering to calculate phase equilibria.
Is NRTL an activity coefficient model?
The nonrandom two-liquid (NRTL) model is an activity coefficient model used widely in phase equilibria calculations. The NRTL model has three adjustable parameters that are determined through regression of experimental data for a specific system.
How do I choose Aspen Plus?
Select the Help Topics under Help on the Menu Bar. This will open up the Aspen Plus Help window as shown in Figure 1. On the left hand side of the screen, select the Index tab and type in Property Methods. Select Property Methods in the list on the left hand side and then select the Available Property Methods option.
What is the difference between Uniquac and Unifac?
UNIQUAC (universal quasichemical) is an activity coefficient model used in description of phase equilibria. In fact, UNIQUAC is equal to UNIFAC for mixtures of molecules, which are not subdivided; e.g. the binary systems water-methanol, methanol-acryonitrile and formaldehyde-DMF.
What is an activity coefficient model?
An activity coefficient is a factor used in thermodynamics to account for deviations from ideal behaviour in a mixture of chemical substances. Deviations from ideality are accommodated by modifying the concentration by an activity coefficient.
What is fluid package?
Aspentech’s Hysys is a process simulation tool. You always have to pick a “fluid package” when you use the program: a thermodynamic method it will use to calculate properties, especially vapour-liquid equilibria. If you are in doubt Aspentech Support can always give you personalized advice.
What is Aspen Plus used for?
ASPEN PLUS™ is a software package designed to allow a user to build a process model and then simulate the model without tedious calculations. Our web module that has a full example of use of Aspen Plus™ to model Pyrolysis of Benzene is available thorugh the button below.
What is non random two-liquid model?
Non-random two-liquid model. The non-random two-liquid model (short NRTL equation) is an activity coefficient model that correlates the activity coefficients of a compound i with its mole fractions in the liquid phase concerned. It is frequently applied in the field of chemical engineering to calculate phase equilibria.
What type of model is The NRTL model?
The NRTL model belongs to the so-called local-composition models. Other models of this type are the Wilson model, the UNIQUAC model, and the group contribution model UNIFAC. These local-composition models are not thermodynamically consistent for a one-fluid model for a real mixture due to the assumption…
What are the different NRTL parameters for the same mixture?
Noteworthy is that for the same liquid mixture several NRTL parameter sets might exist. The NRTL parameter set to use depends on the kind of phase equilibrium (i.e. solid–liquid (SL), liquid–liquid (LL), vapor–liquid (VL)).
What is NRTL in Chemical Engineering?
It is frequently applied in the field of chemical engineering to calculate phase equilibria. The concept of NRTL is based on the hypothesis of Wilson that the local concentration around a molecule is different from the bulk concentration.
