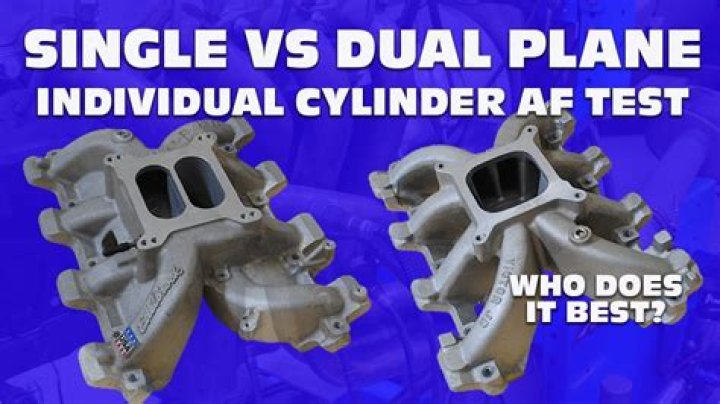

What is the difference between a single plane and a dual plane manifold?

A dual-plane intake manifold has two separate plenums that each feed only four cylinders, while a single-plane intake manifold has a single, open plenum that feeds all eight cylinders. The smaller plenum found in a dual-plane intake, favors power production at a lower rpm range.

Does a high rise intake increase horsepower?

High rise intakes on the other hand are better at building horsepower in the upper RPM range and typically have larger and longer intake runners.

What does a high rise manifold do?

High rise intakes are taller than low rise. High rise is a general term to describe an intake. There is no standard height where low rise intakes end and high rise intakes begin. High rise intakes are better at building horsepower in the upper RPM range and usually have a wider power band.

How much HP does intake manifold add?

Depending on your make, model, engine size, and type of intake, truck owners can expect an increase of between 5 and 15hp.

What’s the difference between single plane and dual plane intake manifolds?

The ongoing debate over selecting intake manifolds generally divides enthusiasts into two camps of conventional wisdom: single plane is for racing, and dual plane is for the street. These well-defined lines of thought have become entrenched in performance engine philosophy, but do you know why?

Can a single plane intake manifold be converted to port EFI?

Hogan’s Racing Manifolds converted this GM LS3/L92-style 4-bbl single-plane intake manifold (PN 25534401) to port EFI. A single-plane intake’s nearly equal intake runner roof height makes it easier to mount EFI fuel rails and nozzles compared to a dual-plane intake.

Should you use a single plane manifold for street use?

“For street use, a single plane manifold works great on stroker motors,” says Smith, adding that the larger cylinder volume helps dilute the fuel-to-air ratio into a more optimized combination at lower rpm. “That larger engine is a little more forgiving. It won’t be as soft driving away from a stop sign.”

Do you cut down the center divider on a dual plane manifold?

“On some of our dual-plane manifolds, we will cut down the center divider; it varies from one manifold design to another,” explains Smith. “The amount that the divider is cut down isn’t determined by numbers on a dart board.
