What is static and dynamic in MAC address table?

Static MAC addresses are created manually, while sticky MAC addresses are converted from valid dynamic MAC addresses after the sticky MAC address is enabled on an interface.

What is a static MAC address?

A Static MAC address is one that has been manualy input (typed via a command) into the CAM or MAC address table. A dynamic MAC address is one that has been learned via an arp request. For example if a switch learns the MAC address from another device then it has dynamically sourced the MAC address.

How do I set a static MAC address?

To configure static MAC address binding, from Policy Manager:

1. Select Network > Configuration.
2. Select an interface, then click Configure.
3. Select the Advanced tab.
4. Adjacent to the Static MAC/IP Address Binding list, click Add.

Is MAC address given by the manufacturer?

MAC addresses are primarily assigned by device manufacturers, and are therefore often referred to as the burned-in address, or as an Ethernet hardware address, hardware address, or physical address. The address typically includes a manufacturer’s organizationally unique identifier (OUI).

Can a MAC address be dynamic?

MAC address entries are classified into dynamic, static, and blackhole entries. In addition, there are MAC address entries that are related to service types, for example, secure MAC and MUX MAC. They are maintained by service modules and are converted from dynamic MAC address entries.

Why you would configure a static MAC address table entry?

The static MAC address entries are often used to prevent unauthorized users from intercepting data of authorized users. If a large number of static MAC address entries are manually configured, network maintenance can be difficult. You can enable port security to dynamically bind MAC addresses to interfaces.

Why would you configure a static MAC address?

Are MAC addresses dynamic?

The MAC address is pretty much static. It is integrated into the NIC hardware, but can often be changed by various methods. Each MAC address is usually globally unique but it needs to be only locally unique to work.

Which part of MAC address is unique to each manufacturer?

These manufacturers all place a special number sequence (called the Organizationally Unique Identifier or OUI) in the MAC address that identifies them as the manufacturer. The OUI is typically right at the front of the address.

What’s the difference between DHCP and static?

What’s the difference between static and DHCP IP? With a static IP address, this unique number stays the same. With a DHCP (dynamic host configuration protocol) address, this number is automatically assigned to each device from a pool of available numbers on the network.

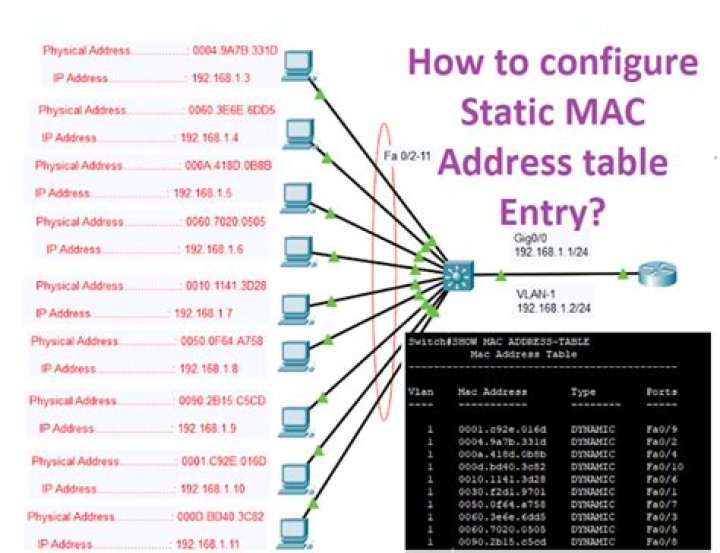

How do I add a static entry to the MAC address table?

Use the mac address-table static command to create a static entry. Here’s what the MAC address table looks like now: There it is, a static entry. No way to overrule this unless you have access to our switch. This prevents us from moving R1 to another interface on SW1 unless we change the static entry.

What is the difference between a static and dynamic MAC address?

06-29-2011 04:14 AM A Static MAC address is one that has been manualy input (typed via a command) into the CAM or MAC address table. A dynamic MAC address is one that has been learned via an arp request. For example if a switch learns the MAC address from another device then it has dynamically sourced the MAC address.

How is a MAC address table built?

A MAC address table is built using the MAC source addresses of the frames received. When a frame is received for a MAC destination address not listed in the address table, the frame is flooded to all LAN ports of the same VLAN with the exception of the port that received the frame.

How do I configure a static MAC address in the CLI?

You can configure a MAC address to statically point to a specific interface. Log in to the CLI in EXEC mode. Know that you cannot configure broadcast or multicast addresses as static MAC addresses. Know that static MAC addresses override dynamically learned MAC addresses on an interface.
