What is spectral leakage in DFT?
Andrew Ramirez What is spectral leakage in DFT?
Spectral leakage occurs when a non-integer number of periods of a signal is sent to the DFT. Spectral leakage lets a single-tone signal be spread among several frequencies after the DFT operation. This makes it hard to find the actual frequency of the signal.
What is spectral leakage caused by?
Spectral leakage due to FFT is caused by: mismatch between desired tone and chosen frequency resolution, time limiting an observation. Understand the concept using hands-on examples.
How do I get rid of spectral leakage?
Spectral leakage cannot be eliminated but it can be reduced by using proper windowing technique before applying FFT. An Example for Spectral leakage: The resolution of DFT is given by k = Nfk / fs, where k=integer (or bucket number), fk is bucket frequency, N is number of samples and fs is sampling frequency.
Does aliasing reduce spectral leakage?
Aliasing in one domain (time or frequency) removes (or reduces) leakage in the other domain.
What is leakage error?
Leakage error is characterized by the representation of false components at frequencies near the actual signal frequency. This error is generally caused by inappropriate signal sampling or acquisition.
Does zero padding improve FFT resolution?
Zero padding enables you to obtain more accurate amplitude estimates of resolvable signal components. On the other hand, zero padding does not improve the spectral (frequency) resolution of the DFT. The resolution is determined by the number of samples and the sample rate.

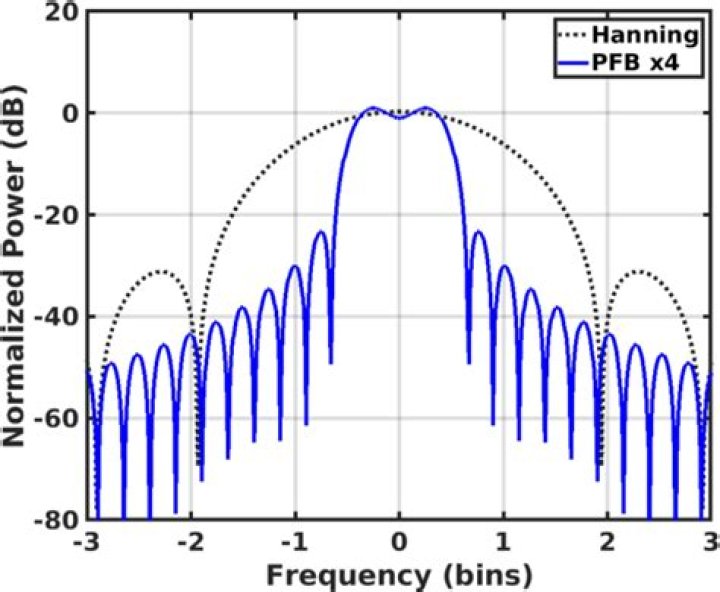

How does windowing reduce spectral leakage?
Spectral leakage is caused by discontinuities in the original, noninteger number of periods in a signal and can be improved using windowing. Windowing reduces the amplitude of the discontinuities at the boundaries of each finite sequence acquired by the digitizer.
What is zero padding in DFT?
Zero padding consists of extending a signal (or spectrum) with zeros. It maps a length signal to a length signal, but need not divide .
How does zero padding affect the DFT?
A common tool in frequency analysis of sampled signals is to use zero-padding to increase the frequency resolution of the discrete Fourier transform (DFT). By appending artificial zeros to the signal, we obtain a denser frequency grid when applying the DFT.
How to reduce spectral leakage in DFT?
We have seen that spectral leakageis reduced by tapering the digital signal by a window function before the DFT takes place. A generalization of this technique is the short-time discrete Fourier transform (STDFT). A sliding window isolates short-time parts of the signal before the discrete Fourier transformation takes place.
What is spectral leakage and how does it work?
Any other type of operation creates new frequency components that may be referred to as spectral leakage in the broadest sense. Sampling, for instance, produces leakage, which we call aliases of the original spectral component. For Fourier transform purposes, sampling is modeled as a product between s (t) and a Dirac comb function.
Is it possible to avoid the leakage from the DTFT?
But when the DTFT is only sampled, at a certain interval, it is possible (depending on your point of view) to: (1) avoid the leakage, or (2) create the illusion of no leakage. For the case of the blue sinusoid (3rd row of plots, right-hand side), those samples are the outputs of the discrete Fourier transform (DFT).
What is the distance between frequency bins of the DFT output?
The distance between frequency bins $\\Delta_f$ of the DFT output only depends on the length of the input sequence $T$ and is given by $$\\Delta_f=1/T_s.$$ The distance between frequency bins does not depend on the sampling frequency. The output of the DFT consists of $N$ frequency bins, which are $\\Delta_f$ apart.
