What is shimming a gearbox?
Andrew Rivera What is shimming a gearbox?

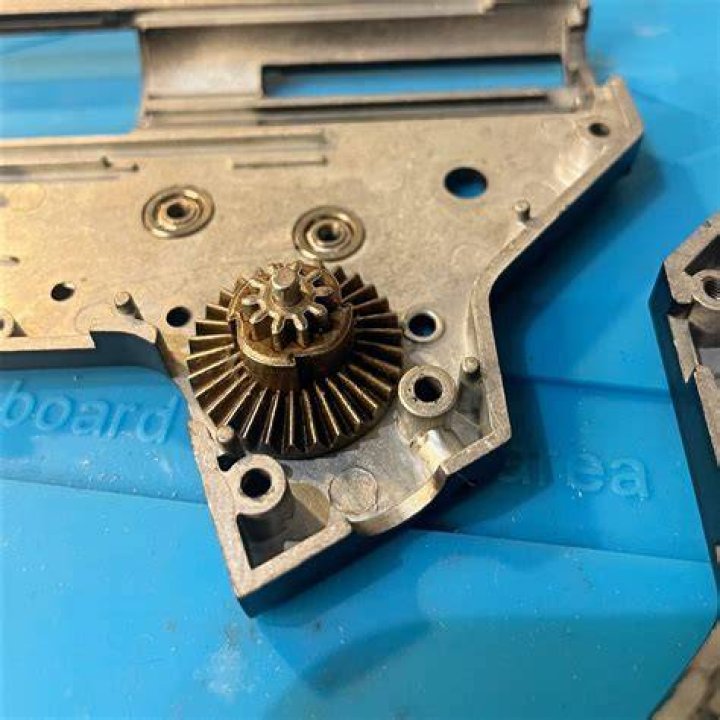

Shimming is the practice of using small spacers (shims) to precisely align the gears in an AEG gearbox so that they operate smoothly. A poorly shimmed gearbox often results in a loud whining noise while firing, premature parts wear, stress on the motor, a reduced rate of fire, and poor battery life.
What is AoE Airsoft?
AoE stands for Angle of Engagement. That is a fancy way of saying how the sector gear hits the piston. Ideally, you want it to be as even as possible between the sector gear and the piston itself.
What is Sorbopad?
The Sorbo Pad Sorbothane Cylinder Head Damper is specifically designed for airsoft version 2 and 3 AEG cylinder heads and also compatible with VSR rifles. It may also work on other cylinder heads with centered nozzles and standard diameter cylinders. Perfect for M4 airsoft guns and other types.
What is a bearing shim?
Bearing Shims are used primarily to set or adjust the pre-load on the bearing races so as to ensure that the bearings roll/move as intended. Bearing Shims are different than Thrust Washers in that Bearing Shims are typically in a static application where Thrust Washers are in more of a dynamic application.
What is Shim plate?
A shim is a thin and often tapered or wedged piece of material, used to fill small gaps or spaces between objects. Shims are typically used in order to support, adjust for better fit, or provide a level surface. Shims may also be used as spacers to fill gaps between parts subject to wear.
How thick should a shim be?
Thinner shims, usually 0.020″ and thinner, are made from ground stock. Most of these shims are accurate to +/-. 0005″. Thicker shims, usually those 0.025″ and thicker, are made from rolled stock.
What is the purpose of shims?
Plain and simple, a shim is a tapered wedge used for making slight adjustments to home elements, such as door frames and windows, to make them plumb and level. The most common shims are wood (often cut from cedar or pine) and serve well for almost any interior adjustment.
How do you Shim a gearbox?
Grab the gears, cut-off lever, bushings/bearings, piston, and gearbox shell – this is what you’ll need to shim. Take everything else and set it aside. Take the gears, gearbox, bushings, bearings, and piston and wash them in warm soapy water if they’re not fresh out of the package.
What does it mean to Shim a gear?
A: Shimming, in this context, is the art of aligning the gear height to make the most optimal mesh with the gears it contacts all while making it as easy for the motor to cycle them as possible. Q: Why should I shim my gearbox?
Why are my bushings not shimming?
Next, check to see if your bushings are too risen up to prevent proper shimming. How to check for this is noted here- [ame] [/ame]. If they are, then you’re going to need to sand them down.
