What is runway touchdown zone?
Robert Harper What is runway touchdown zone?
TOUCHDOWN ZONE [ICAO] − The portion of a. runway, beyond the threshold, where it is intended. landing aircraft first contact the runway.
Where should a plane touchdown on the runway?

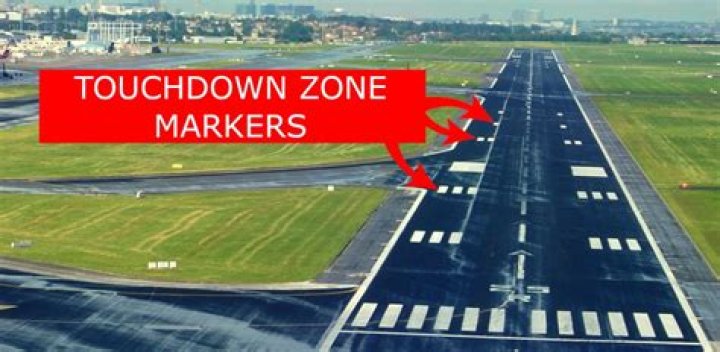

In just about every case on a runway long enough for a jet, the runway aim point will be around 1,000 feet down the runway and the touchdown zone markers occur every 500 feet. Look Down Angle.
What is a touchdown aviation?
(aviation) The moment when an aircraft or spacecraft makes first or final contact with the ground during a landing. The passengers audibly relaxed at touchdown.
What do runway signs mean?
Airport signs with letters denote taxiways, while numbers indicate runways, according to The Points Guy. Black airport signs with yellow letters indicate that you’re already on the taxiway it identifies. The same color rules hold true for numbered signs; the numbers just mean that it’s a runway instead of a taxiway.
What is runway aiming point?
It’s the point on a runway that the landing pilot is aiming to touch at. Usually for jets it’s a point 1000ft past the beginning of the runway, often marked by a pair of large solid white rectangles.
How far down the runway does the touchdown zone extend?
The AIM defines the touchdown zone simply enough: “The first 3,000 feet of the runway beginning at the threshold.”It’s common for pilots to have forgotten the definition of the touchdown zone, likely last remembered during a cram session for the instrument rating oral exam.
How do runway lights work?
The lights marking the ends of the runway emit red light toward the runway to indicate the end of runway to a departing aircraft and emit green outward from the runway end to indicate the threshold to landing aircraft.
How do you read a runway?
Plainly put, airport runways are numbered according to compass bearings. This means runway numbers are based on the compass with 360 representing north, 90 representing east, 180 representing south, and 270 representing west. Runways are numbered between 01 and 36.
How do they name runways?
Runways are named by a number between 01 and 36, which is generally the magnetic azimuth of the runway’s heading in decadegrees. A runway numbered 09 points east (90°), runway 18 is south (180°), runway 27 points west (270°) and runway 36 points to the north (360° rather than 0°).
Why are runways numbered?
All runways are numbered based on the magnetic azimuth (compass bearing) in which a runway is oriented. So if you’re on runway 9, then you’re heading east (90 degrees on a compass). Runway 36 means you’re moving north, and so on. Most runways can typically be used in either direction, depending on prevailing winds.
Can you land on displaced threshold?
If you’re landing on a runway with a displaced threshold, you can’t land before the marked threshold. When operating on the opposite end of the pavement, you can also use that displacement for takeoff and for your landing rollout (usually followed by turning off onto the taxiway at the end.)
What does touchdown zone mean?
TOUCHDOWN ZONE – The first 3,000 feet of the runway beginning at the threshold. The area is used for determination of Touchdown Zone Elevation in the development of straight-in landing minimums for instrument approach es. (See ICAO term TOUCHDOWN ZONE.)… [>>>] ~[ ⇑] (TDZ)
What is runway clear zone?
Runway clear zone means an area at ground level underlying a portion of the approach surface specified in the standards incorporated into this part by § 152.11.
What are touchdown zone lights?
Touchdown zone lights (TDZL) – rows of white light bars (with three in each row) at 30 or 60 m (98 or 197 ft) intervals on either side of the centerline for 900 m (3,000 ft). Taxiway centerline lead-off lights – installed along lead-off markings, alternate green and yellow lights embedded into the runway pavement.
What is a touchdown zone?
The Touchdown zone is the portion of a runway, beyond the threshold, intended as the first point of contact between landing aircraft and the runway.
