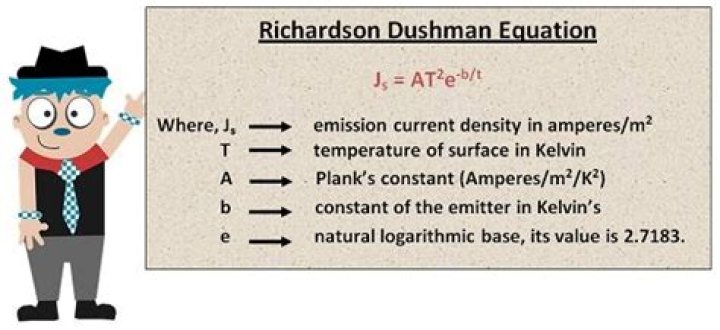

What is Richardson Dushman equation?

The Richardson-Dushman equation relates the current density of a thermionic emission to the work function (W) and temperature (T) of the emitting material: js = A T2 exp(-W/kT) where. js is the current density of the emission (mA/mm2) A is Richardson’s constant.

What do you mean by Schottky effect?

Schottky effect, increase in the discharge of electrons from the surface of a heated material by application of an electric field that reduces the value of the energy required for electron emission. The effect is named after its discoverer, the German physicist Walter Schottky.

What is Schottky field emission?

The Schottky effect or field enhanced thermionic emission is a phenomenon in condensed matter physics named after Walter H. Schottky. In electron emission devices, especially electron guns, the thermionic electron emitter will be biased negative relative to its surroundings.

What is field enhanced thermionic emission?

Now, we can come to the topic – Schottky Effect (Field enhanced thermionic emission). Here; when we apply an electric field to a heated material, the emission of electrons from the surface increases.

What is Richardson law?

thermionic emission In electricity: Thermionic emission. A formula known as Richardson’s law (first proposed by the English physicist Owen W. Richardson) is roughly valid for all metals. It is usually expressed in terms of the emission current density (J) as in amperes per square metre.

How is Richardson constant calculated?

A* is the Richardson constant and was theoretically calculated (A* = 4πqk2m*/ h3) , where m* is effective mass of the material used and it is assumed constant value with the varying temperature.

How is Schottky defect calculated?

The number of Schottky defects (n) present in an ionic compound containing N ions at temperature Tis given by n = Ne E/2KT, where E is the energy required to create ‘n’ Schottky defects and K is the Boltzmann constant. If the mole fraction of Schottky defect in NaCl crystal at 2900 K is X.

What is difference between Frenkel defect and Schottky defect?

In Schottky defect the difference in size between cation and anion is small. Frenkel defect contains ionic crystals where the anion is larger than the cation. Both anion and cation leave the solid crystal. Usually the smaller ion cation leaves its original lattice structure.

When Schottky defect is observed in crystals?

Schottky defect in crystals is observed when equal numbers of cations and anions are missing from the lattice. Hence, the option B ) is the correct answer.

What is Schottky defect example?

Schottky defect is shown by ionic substances in which the cation and anion are of almost similar sizes. For example, NaCl, KCl, CsCl and AgBr. It may be noted that AgBr shows both, Frenkel as well as Schottky defects.

What is Richardson law statement?

Richardson’s law From band theory, there are one or two electrons per atom in a solid that are free to move from atom to atom. This is sometimes collectively referred to as a “sea of electrons”.

What is child’s law?

Child law can be described as the sum of all the law that in any way handles or regulates children’s life situations, including children’s rights as expressed in the UN Convention on the Rights of the Child. Child law has a distinct interdisciplinary character and lies at the interstices of public and private law.

What is Schottky effect in physics?

Schottky effect. Not to be confused with Schottky defect. The Schottky effect or field enhanced thermionic emission is a phenomenon in condensed matter physics named after Walter H. Schottky. In electron emission devices, especially electron guns, the thermionic electron emitter will be biased negative relative to its surroundings.

How do you calculate the concentration of Schottky defects?

At any given temperature, there is a concentration of defects (i.e. Schottky defects per unit volume) given by the following formula: ns = number of Schottky defects per unit volume at temperature T (in Kelvins) in a crystal with N anion and N cations per unit volume, and ∆Hs is the enthalpy for creating one defect.

What is Schottky effect (field enhanced thermionic emission)?

Now, we can come to the topic – Schottky Effect (Field enhanced thermionic emission). Here; when we apply an electric field to a heated material, the emission of electrons from the surface increases.

What is the Schottky-Mott theory?

The first-order theory of the formation of a Schottky barrier is the view attributed to W. Schottky and Sir Mott. The Schottky-Mott theory proposes that the Schottky barrier height depends sensitively on the work function of the metal (SBH=Workfunction of metal-Fermi level of Semiconductor).
