What is RA finish?
Andrew Rivera What is RA finish?

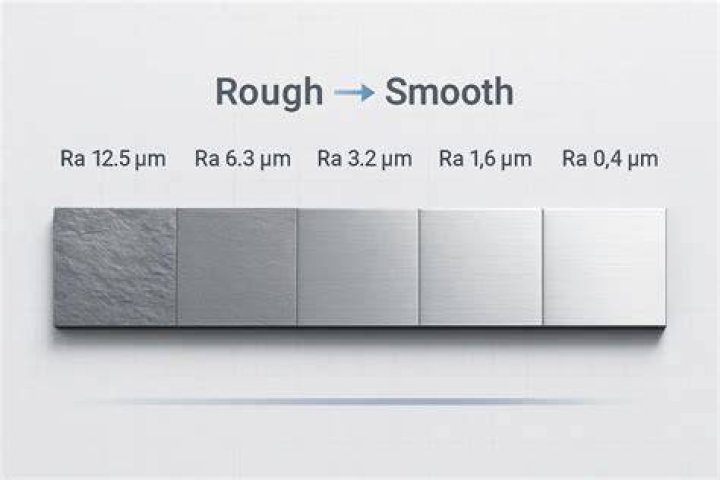

Ra is the arithmetic average of surface heights measured across a surface, Ra surface finish. Simply average the height across the microscopic peaks and valleys. It basically reflects the average height of roughness component irregularities from a mean line.
What are the finishes of stainless steel?
Three more common stainless steel finishing options are:
- No. 2B – Matte finish.
- No. 4 – Brushed finish.
- No. 8 – Mirror finish.
What is RA value of stainless steel?
Typical Ra values for these stainless steels are below 0.1 micrometers. Considered the best surface for corrosion resistance, the 1P – 2P finishes have many applications.
What is No 6 finish on stainless steel?
The No. 6 Fine Satin Finish delivers a “2B mill-finish-surface-roughness-equivalent” with a fine-grain satin appearance. It has a higher degree of surface lubricity and reflectivity than our No. 4 Standard Satin Finish (32 Ra max), aiding cleanability and bacteria-free surfaces.
How is RA calculated?
Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys. RMS is calculated as the Root Mean Square of a surfaces measured microscopic peaks and valleys.
What is RA value?
1, Ra is the arithmetic average of the absolute values of the profile height deviations from the mean line, recorded within the evaluation length. Simply put, Ra is the average of a set of individual measurements of a surfaces peaks and valleys.
What Ra is a 2B finish?
It is considered as smooth or smoother than a polished #4 finish and both are acceptable for meeting USDA standards. The Ra for a 2B finish is typically 0.3 (12) to 1µ (40) depending on the gauge of the metal.
What is a #4 finish?
4 Finish is characterized by short, parallel polishing lines extending uniformly along the length of the coil. It is obtained by mechanically polishing a No. 3 finish with gradually finer abrasives. Depending on the requirements of the application, the final finish can be anywhere between 120 and 320 grit.
What finish is 316316l stainless steel sheet 2B finish?
316L stainless steel sheet 2B finish has a mill finish, which is smooth and NOT the brushed finish commonly seen on kitchen appliances.
What is 316L stainless steel vessels?
These 316L stainless steel vessels have smooth, polished interiors with a 12 Ra internal finish. This smoothness makes the steel vessels easy to clean and sanitize and improves their durability. Passivation of the finish is also standard on all pressure vessels, which increases the corrosion resistance of the stainless steel.
Does 316L stainless steel hold a magnet?
316L stainless steel sheet 2B finish is austenitic, meaning it will not attract or hold a magnet. If you need that option in stainless steel, the 430 grade will hold a magnet. 316L stainless steel sheet 2B finish has a mill finish, which is smooth and NOT the brushed finish commonly seen on kitchen appliances.
Can You Hem 316L stainless steel sheet metal?
If you need any fabrication (grain preference, hemming, rounded corners), you must select the “cut to your size” option. The maximum thickness of 316L stainless steel sheet metal that we can hem is 22 gauge. If you need a bending option, please see our Angle/Channel section.
