What is queen post roof truss?
Carter Sullivan What is queen post roof truss?
A queen post, sometimes called queenpost or queenspost, is a type of roof truss that has two vertical posts that rise up from a tie beam at the bottom to support the rafters. The posts are connected by a horizontal support. This is usually a straining beam, tie, or cable.
What are the parts of the Queen Post?
Queen Post Truss Consists of Following Components:
- Two Queen posts.
- Two Principal Rafters.
- Struts.
- Tie Beam.
- Straining beams.
- Straining sills.
- Purlins.
What is the maximum span of wooden queen post truss?
12 m spans
Explanation: Queen-post trusses are suitable for up to 12 m spans.
How far can a queen post truss span?
Queen Post Roof Trusses are very similar in design to king post trusses except that the interior of the truss has two vertical ‘queen posts’ instead of one central ‘king post’. They look great and offer an open area in the middle of the truss. Queen post timber trusses can easily span 30 feet or more.
What grade timber is used for roof trusses?
TR26 grade timber has been a cornerstone product of timber roof truss manufacturing for a number of years and therefore is the only kind of timber that we use and provide for our customers. The TR26 grade timber that we sustainably source is in accordance with BS EN 14081, kiln dried and planed all round.
What is the function of a queen post?
A queen post is a tension member in a truss that can span longer openings than a king post truss. A king post uses one central supporting post, whereas the queen post truss uses two. Even though it is a tension member, rather than a compression member, they are commonly still called a post.
Where are queen post truss used?
Queen post truss is widely used in houses as well as in churches and other construction of buildings with required large open space. this type of design is also used in modern construction of buildings in exteriors architecture. mostly used in decorative purposes in gables in many styles of architecture.
What are the parts of truss?
A truss consist of angles, channels, plates and eye bars. It is a framework, typically consisting of rafters, posts, and struts, supporting a roof, bridge or other structure.
What do trusses rest on?
Think of trusses as the cap of any building. Trusses take the place of a hand frame rafter roof system and have specific engineering loads that a rafter system does not have. Trusses must rest on a true bearing.
What is the difference between Queen Post and king post?
What is the spacing of roof trusses?
Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.
What is the difference between king post and Queen post trusses?
The wooden queen post truss differs from a king-post truss in having two wooden uprights or vertical members which are known as queen post. In this roof, Queen – posts are used instead of king post. In this roof, The Queen posts are the tension members which are used to prevent the sagging of tie beam.
What is a queen post on a roof?
In this roof, The Queen posts are the tension members which are used to prevent the sagging of tie beam. The upper ends of the queen-posts are kept in position by straining beam.
What are the parts of a queenqueen truss?

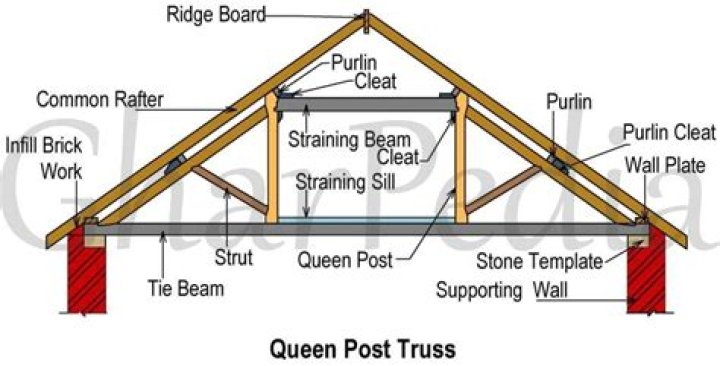

Queen truss parts explained: Ridge Board: A non-structural member of the truss where rafters can lean against and connect to. Straining Beam: A short piece of timber that keeps the ends of struts and rafters in place. Common Rafter: Also called minor rafter because it is smaller than the Principal Rafter/Major Rafter.
What is a truss roof frame?
Truss is basically a triangle or arch shapes frame used a majority in roof cover it. Queen Post Truss is defined as a pitched roof support using two vertical tie posts connected between the tie beam and the rafters.
