What is polarization retardation?
Sarah Parker What is polarization retardation?
Retardation – Retardation describes the phase shift between the polarization component projected along the fast axis and the component projected along the slow axis. Retardation is specified in units of degrees, waves, or nanometers.
How does a waveplate work?
A waveplate works by shifting the phase between two perpendicular polarization components of the light wave. A typical waveplate is simply a birefringent crystal with a carefully chosen orientation and thickness. The ordinary axis is perpendicular to the optic axis. The extraordinary axis is parallel to the optic axis.
What are Quarter waveplate and half waveplate?

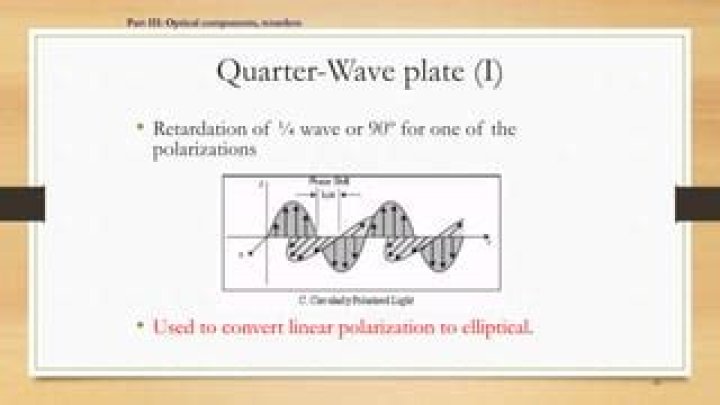

The key difference between half wave plate and quarter wave plate is that half wave plate tends to shift the polarization direction of linearly polarized light, whereas quarter wave plate tends to convert linearly polarized light into circularly polarized light.
What is light retardation?
It takes the slow ray longer to traverse the crystal than it takes the fast ray. The fast ray will have passed through the crystal and traveled some distance ∆ beyond the crystal before the slow ray reaches the surface of the crystal. This distance ∆ is called the retardation.
What is a zero order Waveplate?
Zero-Order Waveplates are made from two Crystalline Quartz or Sapphire plates of similar thickness, that are optically contacted together with orthogonally aligned optical axes. Retardation varies slowly with wavelength, thus they are useful with tunable or broadband sources.
Why half plate is used?
The half wave plate can be used to rotate the polarization state of a plane polarized light as shown in Figure 1. A half-wave plate is very handy in rotating the plane of polarization from a polarized laser to any other desired plane (especially if the laser is too large to rotate).
What is elliptically Polarised light?
Elliptically polarized light consists of two perpendicular waves of unequal amplitude which differ in phase by 90°. If the thumb of your right hand were pointing in the direction of propagation of the light, the electric vector would be rotating in the direction of your fingers.
How do you identify Quartz in a thin section?
In thin section, when viewed in plane polarized light (PPL), quartz is colorless with low relief and no cleavage. Its habit is either fairly equant or anhedral if it infills around other minerals as a cement.
Is Pleochroic a biotite?
In thin section, biotite exhibits moderate relief and a pale to deep greenish brown or brown color, with moderate to strong pleochroism. Biotite has a high birefringence which can be partially masked by its deep intrinsic color.
How do waveplates delay polarization of light?
They do this by retarding (or delaying) one component of polarization with respect to its orthogonal component. In unpolarized light, waveplates are equivalent to windows – they are both flat optical components through which light passes. Understanding waveplates as they pertain to polarized light is a bit more complex.
What is a waveplate and how does it work?
This results in the transformation of one state of polarization to another – linear to circular, vertical to horizontal, etc. In conjunction with other polarizing elements such as Brewster windows, polarizing beamsplitters, and linear polarizers, the waveplate can act as a valve, filter, tuner, or switch.
What are the disadvantages of multiple order waveplates?
Although multiple order waveplates are designed with only a single birefringent material, they can be relatively thick, which eases handling and system integration. The high thickness, though, makes multiple order waveplates more susceptible to retardation shifts caused by wavelength shift or ambient temperature changes.
What is the birefringence of a 600 nm wave plate?
Birefringence is neither exactly proportional to wavelength nor completely achromatic. Therefore a λ4 waveplate at 600 nm is not a λ/4 waveplate at 300 nm, nor is it a λ/2 waveplate at 300 nm.
