What is midship section of a ship?
Daniel Rodriguez What is midship section of a ship?

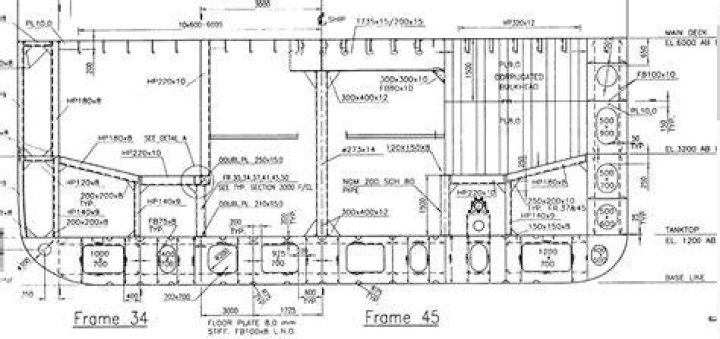

Definition of midship section : a drawing of the cross section of a ship amidships showing details of frames, beams, and other structural parts.
How do you find the midship area?
How to calculate the strength of Midship Section of a Ship
- Bending Stress = Bending Moment/Section Modulus.
- Bending Stress = Bending Moment at midship/Section modulus of Midship.
- Section Modulus = INA/yLOC
- INA = IBL – yNA2 x A.
What are the parts of container ship?
E.g. rudder, anchor, bow, keel, accommodation, propeller, mast, bridge, hatch coves and bow thrusters are some common visible parts. In contrast, bulkheads, frames, cargo holds, hopper tank, double bottom, girders, cofferdams, side shell etc., are the invisible parts of a ship.
Where is the midship located along the length of the ship?
Description of the Case
| Variable | Distribution | Mean |
|---|---|---|
| Material parameter, ln C | Normal | −23.30 |
| Stress scale parameter, lnA | Normal | 1.019 |
| Crack aspect ratio, a/c | Fixed | 0.5 |
| Random bias of a/c, εa/c | Normal | 1.0 |
How high can container ships be stacked?
How High Can Shipping Containers Be Stacked? Shipping containers may be stacked up to nine high, depending on the maximum stack load of the lowest container. It is usually better to err on the side of caution, particularly when it comes to stacking containers that contain heavy loads.
What is midship section coefficient?
– Midship section coefficient, also coefficient of fineness of the midship section – The ratio between the actual underwater area of a midship section and that of a rectangle of the same depth and width. The average value of this coefficient is 0.9 for merchant ships.
What is midship area coefficient?
Midship Section Area Coefficient (Cm) It is the ratio of the actual area of the immersed portion of the ship’s midship section to the product of the breadth and the draught of the ship.
How many stock photos of shipping container ships are there?
Browse 52,243 container ship stock photos and images available, or search for shipping container or cargo ship front to find more great stock photos and pictures.
What is the mid-ship section of a ship like?
Mid-ship section is taken at amidship but stern area will be much different due to Engine room. All areas above water line are used for comfort of passengers. You can expect shopping areas, Open decks, number of swimming pools, Sun decks etc. They have movie halls and concert areas. Just think of anything that makes you comfortable.
What is the size of a shipping container?
Container ships: They are designed to carry Boxes of 20ft x 8 ft x 8ft 6 inch sizes. Some boxes have length of 40 ft or 45 ft. Width is always the same 8 ft. Height variation may be there. Cargo holds have smooth finish to tightly pack containers. Since boxes are stacked one on top of other, they need securing arrangement.
What are the parts of double hull tanker?
The above figure is the midship section of a double hull tanker. The right half of the drawing shows an ordinary frame, where the outer and inner hull plates are longitudinally framed. The centre tank is used for storage of cargo oil, and the wing tanks or segregated ballast tanks (SBTs) are used for carrying sea water ballast.
