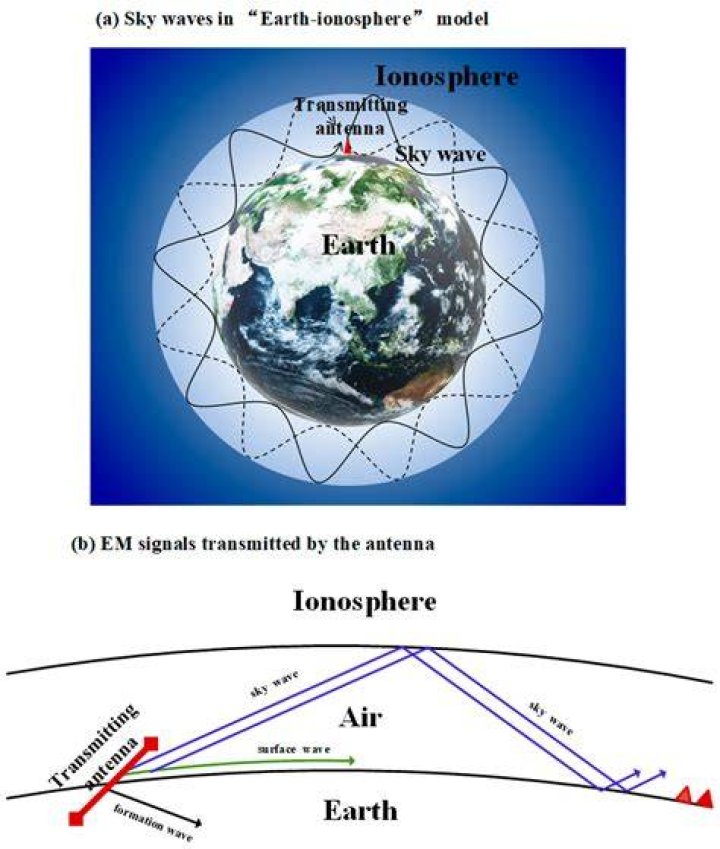

What is ionosphere wave propagation?

The reflections from the ionosphere are actually produced by refraction as the wave propagates through the ionosphere. The ionosphere is a concentrated region highly charged ions and electrons that collective form an ionized gas or plasma.

Which propagation mode uses ionosphere?

HF propagation using the ionosphere is still a widely used as a form of radio communications.

What is an ionosphere How do the layers of the ionosphere affect the propagation of radio waves?

The ionosphere contains a high proportion of free electrons which influence radio propagation. High Frequency (HF) radio waves hitting the free electrons in the ionosphere cause them to vibrate and re-radiate the energy back down at the same frequency, effectively bouncing the radio wave back towards the Earth.

What happens in the ionosphere layer?

The ionosphere is constantly changing. Because it’s formed when particles are ionized by the Sun’s energy, the ionosphere changes from Earth’s day side to night side. When night falls, the ionosphere thins out as previously ionized particles relax and recombine back into neutral particles.

What are the layers of the ionosphere?

The three main layers of the ionosphere labeled D, E and F. This absorption of radiation is also responsible for the ionosphere. Located within the thermosphere, the ionosphere is made of electrically charged gas particles (ionized).

Which is also called ionosphere?

The thermosphere is also called ionosphere.

What the ionosphere is and how it affect radio waves?

The Ionosphere is part of Earth’s upper atmosphere, between 80 and about 600 km where Extreme UltraViolet (EUV) and x-ray solar radiation ionizes the atoms and molecules thus creating a layer of electrons. the ionosphere is important because it reflects and modifies radio waves used for communication and navigation.

What is the role of ionosphere in short wave communication?

The ionosphere is a region of the upper atmosphere where there are large concentrations of free ions and electrons. In particular the ionosphere is widely known for affecting signals on the short wave radio bands where it “reflects” signals enabling these radio communications signals to be heard over vast distances.

What is the main function of the ionosphere?

the ionosphere is important because it reflects and modifies radio waves used for communication and navigation. Other phenomena such as energetic charged particles and cosmic rays also have an ionizing effect and can contribute to the ionosphere.

What is the lowest layer of ionosphere?

D region
The D region is the lowest ionospheric region, at altitudes of about 70 to 90 km (40 to 55 miles). The D region differs from the E and F regions in that its free electrons almost totally disappear during the night, because they recombine with oxygen ions to form electrically neutral oxygen molecules.

What is the best layer of ionosphere?

F region
The F region is at the highest region in the ionosphere and as such it experiences the most solar radiation. Much of the ionisation results from ultra-violet light in the middle of the spectrum as well as those portions of the spectrum with very short wavelengths.

Is the lowest layer and is the highest layer in the ionosphere?

The uppermost part of the ionosphere, the F region, starts about 150 km (93 miles) and extends far upward, sometimes as high as 500 km (311 miles) above the surface of our home planet. The regions of the ionosphere are not considered separate layers, such as the more familiar troposphere and stratosphere.

How does the ionosphere affect radio signal propagation?

These interactions cause the radio signals to change direction, and to reach areas which would not be possible if the radio signals travelled in a direct line. The ionosphere is a particularly important region with regards to radio signal propagation and radio communications in general.

How do ham radio operators use the ionosphere?

Thanks to ionospheric propagation of radio waves, ham radio operators can rely on HF ionospheric radio signal propagation to communicate with fellow hams located way beyond the horizon. The ionized layers of the ionosphere make HF radio wave propagation possible much beyond line of sight distances.

Which HF bands do not support ionospheric propagation?

At the low point of the cycle, HF bands above 20 MHz or so may not support ionospheric propagation. At or near the 11-year peak, frequencies at 50 MHz and higher may be effective. Signals in the medium and shortwave bands travel by two basic means: ground waves and sky waves.

What causes ionisation in the ionosphere?

The ionisation in the ionosphere is caused mainly by radiation from the Sun. In addition to this, the very high temperatures and the low pressure result in the gases in the upper reaches of the atmosphere existing mainly in a monatomic form rather than existing as molecules.
