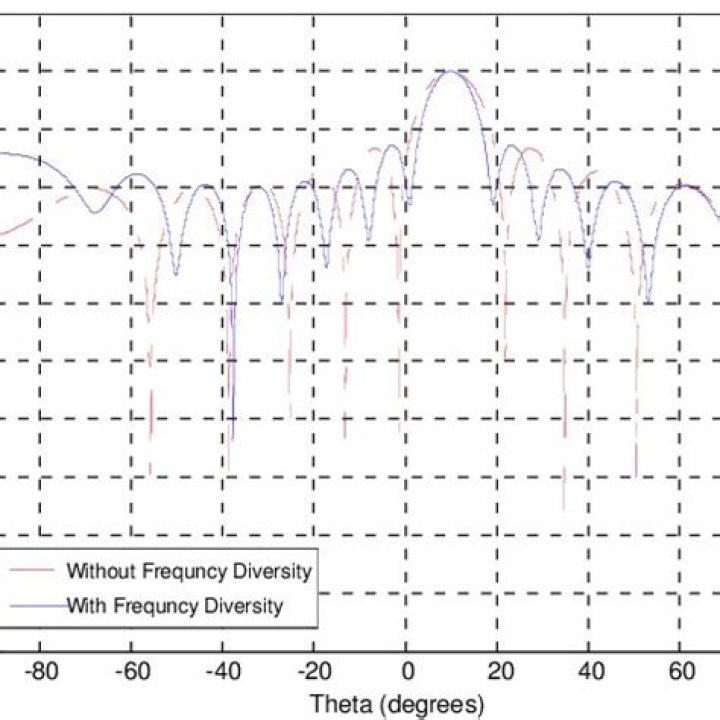

What is frequency diversity in radar?

Frequency diversity (FD) is a technique that significantly improves radar detection performance in clear and under adverse weather conditions. With FD two or more conventional radar transceivers are combined through a common antenna, in a multiplex arrangement on the same RF transmission channel.

What is frequency diversity?

Frequency diversity is the process of receiving a radio signal or components of a radio signal on multiple channels (different frequencies) or over a wide radio channel (wide frequency band) to reduce the effects of radio signal distortions (such as signal fading) that occur on one frequency component but do not occur …

How many receiving antennas are used with frequency diversity?

one antenna
Selection diversity uses only one antenna signal to the receiver at any given time. The antenna chosen, however, is based on the best signal-to-noise ratio (SNR) among the received signals.

Why do we use frequency diversity?

Frequency diversity allows the transmission of the same message signal at different carrier frequencies. In order for the received signals to be statistically independent or at least uncorrelated, the carrier frequencies must have a separation that is greater than the coherence bandwidth of the radio channel.

What is frequency agility in radar?

Frequency agility is the ability of a radar system to quickly shift its operating frequency to account for atmospheric effects, jamming, mutual interference with friendly sources, or to make it more difficult to locate the radar broadcaster through radio direction finding.

How does space diversity work?

Antenna diversity, also known as space diversity or spatial diversity, is any one of several wireless diversity schemes that uses two or more antennas to improve the quality and reliability of a wireless link. This is because multiple antennas offer a receiver several observations of the same signal.

What is diversity reception?

Definition of diversity reception : a method of radio reception in which the best signal impulse is automatically selected from among those available (such as those produced by several antennas in different locations)

What is the difference between polarization diversity and frequency diversity?

In Frequency Diversity only one antenna is needed. Polarization Diversity: Polarization Diversity require two transmitter and two receiving antennas with different polarization. The transmission wave with two different polarization constitute two different paths.

Which one is most commonly used diversity technique?

Spatial Diversity
Spatial Diversity is the most widely used diversity technique. In this technique multiple antennas are strategically spaced and connected to common receiving system.

What is the difference between space diversity and frequency diversity?

The most common methods are generically described as frequency diversity and space diversity. In frequency diversity, the same information is transmitted over more than one radio channel. In space diversity, the signal reaches the receiver through more than one transmit/receive antenna path.

What is difference between frequency diversity and time diversity?

Time diversity: Multiple versions of the same signal are transmitted at different time instants. Frequency diversity: The signal is transmitted using several frequency channels or spread over a wide spectrum that is affected by frequency-selective fading.

How does MIMO radar work?

Unlike a standard phased-array radar, which transmits scaled versions of a single waveform, a MIMO radar system can transmit via its antennas multiple probing signals that may be chosen quite freely (see Fig. 1.1). This wave- form diversity enables superior capabilities compared with a standard phased- array radar.

What is the difference between simple diversity switching and MIMO?

Only one radio is present and so the receiver listens to one antenna at a time and a RF switch is used to select the antenna giving the best signal. Whilst simple diversity switching seeks to minimise the effects of multipath, MIMO makes use of multipath in order to improve the signal quality and reliability.

What is diversity reception in mobile radio?

The use of diversity reception in mobile radio systems relies on the realisation of two or more receive signal paths in which the variation of signal level with time is to some extent uncorrelated1. Diversity itself is a difficult concept to define and even harder to measure directly.

How does beam diversity affect antenna reception?

Beam diversityIn any given direction antennas have different gains. This results in a different weighting of multipath components of the desired signal being delivered by each antenna. Electrically small antennas are low directivity devices so beam diversity is a weak effect contributing to diversity reception. 3.
