What is etchant and Maskant?
Emily Wong What is etchant and Maskant?
The process essentially involves bathing the cutting areas in a corrosive chemical known as an etchant, which reacts with the material in the area to be cut and causes the solid material to be dissolved; inert substances known as maskants are used to protect specific areas of the material as resists.
What is meant by Maskant?
Maskant means a coating applied directly to a component to protect surface areas when chemical milling, anodizing, aging, bonding, plating, etching, or performing other chemical operations on the surface of the component. Sample 1. Sample 2.
What is the purpose of Maskant in CHM and how is it classified?

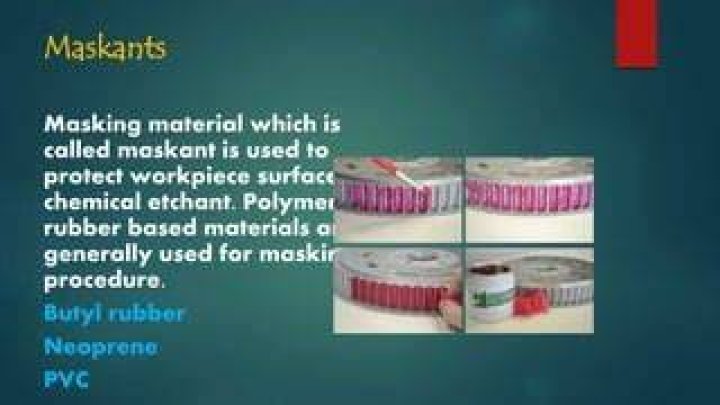

Maskants (chemically resistant coatings) are used to cover the surfaces which are not to be machined. 2. It does not allow the etchant to reach and react with work piece to dissolve it.
What are the techniques of applying Maskant?
>>In the cut and peel method, neoprene, butyl, or vinyl based materials are used as maskant. >> In this process, dipping, spraying, or flow coating the maskant material can be used for masking.
What is etch factor?
The Etch Factor is the ratio between the difference in the widths of the widest and narrowest parts of the feature after etching is completed and the thickness of the metal etched. This can be expressed as a percentage as shown in the first equation or as a ratio as shown in the second.
What is chemical milling process?
Chemical milling is the subtractive machining process using baths of temperature-regulated etching chemicals to remove material for producing the required shape [11]. It is defined as the method of chemically corroding of material to produce blind features like pockets, channels, etc.
What is chemical machining process?
Chemical Machining is the clean removal of metal from pre described areas without altering the integrity or properties of the metal by means of a photochemical process. This process is primarily used in creating small thin metal parts of complex design with no burns or stresses to the parts.
What are the uses of Etchants and Maskants used in CHM?
“Maskants are generally used in CHM, to protect the work piece from the etching chemical agent.” Clarification: In CHM, maskants are used to protect the work piece from chemical agents.
What are the advantages of ECM?
Benefits of ECM
- Keep Track of All Your Information. While having a large quantity of critical information may be necessary and desirable, it can often lead to problems.
- Reduce Operating Costs.
- Save Time.
- Improve Customer Service.
- Minimize Risk.
- Document Version Control.
What is chemical blanking?
Chemical blanking process is a prominent nontraditional machining process for producing machined features on thin plates and foil material using a suitable etching solution, which were generally produced by mechanical blanking presses. In pre-process, material surface is cleaned by pickling, degreasing, and grinding.
Is it better to have higher or lower etch factor?
A higher etch factor results in lower inductance and higher capacitance which bring the characteristic impedance of the trace closer to the theoretical value considered by board designers [1].
What is the adhesion of the maskant in chemical milling?
The maskant must adhere to the surface of the material, and it must also be chemically inert enough with regard to the etchant to protect the workpiece. Most modern chemical milling processes use maskants with an adhesion around 350 g cm−1; if the adhesion is too strong, the scribing process may be too difficult to perform.
Which method of masking is suitable for all stop-off operations?
No one method of masking is suitable for all stop-off operations. Each has its own advantages and disadvantages. In some cases, the masking technique is specific to one type of operation. For example, copper plating is used as stop-off for carburization processes, because copper resists the diffusion of carbon.
What is the thickness of the coating on the masking material?
>> In the cut and peel method, neoprene, butyl, or vinyl based materials are used as maskant. >> In this process, dipping, spraying, or flow coating the maskant material can be used for masking. >> The thickness of the coating in this process is generally from 25 μm to 130 μm.
What is the difference between etching and scribing?
If the adhesion is too low, the etching area may be imprecisely defined. Most industrial chemical milling facilities use maskants based upon neoprene elastomers or isobutylene-isoprene copolymers. Scribing is the removal of maskant on the areas to be etched.
