WHAT IS end cap in piping?
Robert Harper WHAT IS end cap in piping?

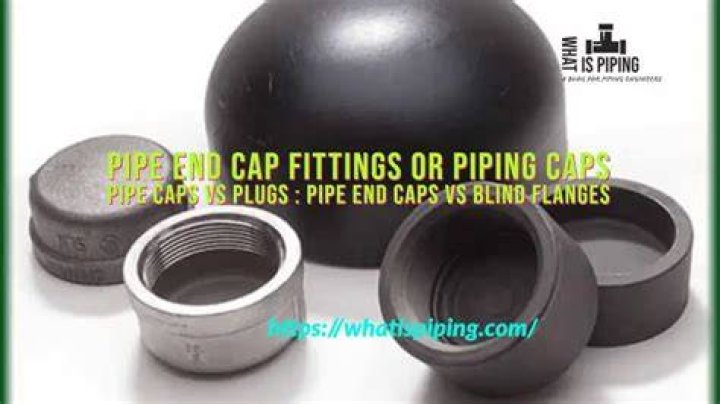

Pipe caps act as protective device and are designed to protect pipe ends of various shapes. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc.
What is BW in pipe?
BW. BW is an abbreviation of Butt Weld(ing). A Butt Weld is a circumferential butt welded joint, and the most common type of joint employed in the fabrication of welded pipe systems. A butt joint is the most universally used method of joining pipe to itself, fittings, flanges, valves, and other equipment.
What is a pipe weld cap?
Pipe caps fit over or are welded onto the end of a pipe, providing a liquid or gas tight seal. Caps are stocked in Aluminum, Carbon Steel, Malleable Iron, and Stainless (304 and 316) Steel.
What is a pipe cap called?
Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end or mounted on the external thread of the pipe end to cover the pipe fittings. (You can also to use a blind plate to close the pipeline, differently the blind plate is detachable and the welded steel cap is not removable.
What are cap fittings used for?
Flexible end caps, elbows and tees are often used in the plumbing, waterworks, and sump and sewage industries. Flexible end caps are used for capping pipe ends, while flexible elbows and tees are used for attaching pipes together.
What is SW and BW?
Socket Weld (SW) fittings are defined in the ASME B16. 11. Both the pipe and the fitting are square cut, with no need for beveled end or preparation other than cleaning the outside, which allows easy welding and installation. Butt weld (BW) fittings are defined in the ASME B16. 9.
What does FF stand for in piping?
Common US valve abbreviations used in drawings and documentation
| Abbreviation | Type of Valve |
|---|---|
| FE | Flange End |
| FF | Flat Face |
| FLG | Flange |
| FTTG | Fitting |
How are pipe caps made?
One of the most common manufacturing methods for caps, where plate is cut out in a circle and formed by deep drawing. Deep drawing involves stretching the metal blank around a plug and then moving it into a moulding cutter called a die.
How do you cap non threaded PVC pipe?
The cap is generally available for pipes of two inches in diameter or more.
- Step 1 – Apply Primer. Wipe the ends of the pipe thoroughly.
- Step 2 – Apply Cement. To both the primed surfaces, apply PVC cement.
- Step 3 – Seal.
- Step 4 – Test.
What is BW steel pipe cap?
BW steel pipe cap is the butt weld type of fittings, connecting methods is to use butt welding. So BW cap ends in beveled or plain.
What is a stainless steel butt weld cap?
A stainless steel butt weld cap is a type of pipe fitting that covers the end of a pipe. Since it can have female threads, it can screw on to the male end of the pipe. It can also be welded on to close the end of the pipe.
What is an end cap fittings?
Check MSS SP-75 ANSI / ASME B16.9 Buttweld End Cap Weight Calculator And End Cap Dimensions PDF. End Cap fittings are great in providing waterproof connections. These are also used to close or seal the ends of a hydraulic or pneumatic piping system.
What is steelsteel pipe cap?
Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end or mounted on the external thread of the pipe end to cover the pipe fittings. To close the pipeline so the function is the same as the pipe plug.
