What is duty cycle of boost converter?

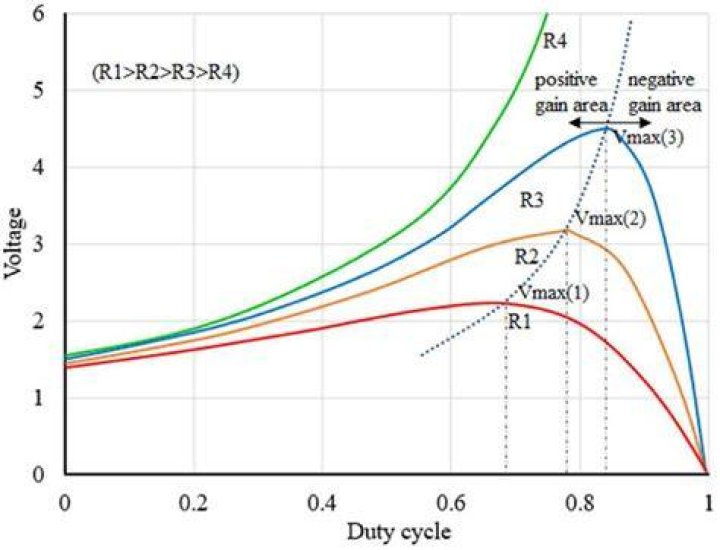

The duty cycle is the ratio of the turn-on time (TON) to the complete cycle length, the turn-off time (TOFF) plus on time, and defines a simple relationship between the input voltage and an output voltage. For a step-up (boost) converter, the duty cycle D = 1 – (input voltage/output voltage). Figure 1.

What is the formula for step up chopper?

Step Up/ Step Down Chopper When the chopper is switched ON, the inductor L becomes charged by the source voltage Vs. Therefore, Vs = VL. When the chopper is switched OFF, the inductor’s polarity reverses and this causes it to discharge through the diode and the load. When, D = 1, VO = ∞.

What is the formula for output voltage of boost converter?

What is the formula for output voltage for Boost converter? Explanation: The output voltage of the boost converter is Vo = Vin ÷ (1-D). The value of the duty cycle is less than one which makes the Vo > Vin. The boost converter is used to step up the voltage.

Which switch is used in boost converter?

The input voltage source is connected to an inductor. The solid-state device which operates as a switch is connected across the source. The second switch used is a diode.

What is boostboost converter design?

Boost converter design is always a compromise between MOSFET breakdown voltage and on resistance. The switching MOSFET of the boost converter is always the weak point, as I learned from cold, hard experience. The maximum output voltage of the boost converter is not limited by design but by the breakdown voltage of the MOSFET.

What is a step up DC-to-DC boost converter?

We take a look at the steps followed by all the necessary calculations to design a Step Up DC-to-DC Boost Converter. The Pocket Step-Up Converter is a DC-to-DC Boost Converter which generates a supply voltage of 5 V or 3.3 V from a single-cell alkaline battery.

What is the ideal efficiency of a boost converter?

These are the key parameters: n = efficiency; Most boost converters average around 85 to 90% under medium load and up to 95% on heavy load. We will use the lowest percentage to be safe. With your specifications, next step is to find your DUTY CYCLE:

What are the different modes of operation of the boost converter?

The boost converter can operate in three modes: continuous conduction mode (CCM), discontinuous conduction mode (DCM), and critical conduction mode (CrCM). Figure 2 shows modeled waveforms to illustrate the inductor and input currents in the three operating modes, for the same exact voltage and power conditions.
