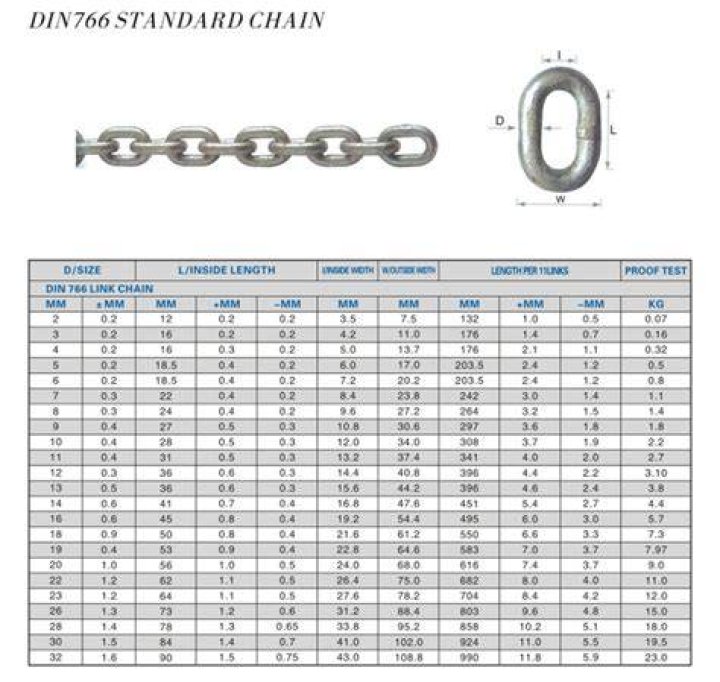

What is DIN 766 chain?
Carter Sullivan What is DIN 766 chain?
DIN766 G43 Windlass Chain uses a high tensile strength carbon steel, specifically designed for anchoring applications, that provides a greater strength-to-weight ratio than DIN766 G30. Each link is calibrated to ensure proper fit for most metric windlasses.
What size is G4 chain?
3/8″
Chain Type: Grade 43 Domestic High Test ISO (embossed “G4″) Chain Trade Size: 3/8″ Working Load Limit: 5,400 lbs. Wire Diameter: 0.394”
How heavy is 8mm chain?
Technical Specifications
| A | B (mm) | Weight per metre (kg) |
|---|---|---|
| 8mm | 24 | 1.5 |
| 10mm | 30 | 2.2 |
| 13mm | 39 | 3.8 |
| 16mm | 48 | 5.8 |
What is ISO chain?
Metric roller chain, also known as ISO British Standard roller chain, is engineered to different specifications than ANSI/ASME Standard roller chain. ISO British roller chains are commonly referred to as short-pitch transmission roller chains.
What is a grade 70 chain?
Grade 70 chain is about 20 percent stronger than Grade 43. It is made from a heat-treated carbon steel that is incredibly sturdy and durable. Grade 70 industrial chains typically come in a gold chromate finish for easy identification – as well as protection from abrasion and scratches.
What is grade 43 chain used for?
Typically used for container securement, logging, farming, towing, marine applications, and as general purpose utility chain.
How strong is 8mm chain?
Technical Specifications
| A | B (mm) | WLL |
|---|---|---|
| 7mm | 21 | 1.5t (1500kg) |
| 8mm | 24 | 2.0t (2000kg) |
| 10mm | 30 | 3.15t (3150kg) |
| 13mm | 39 | 5.3t (5300kg) |
What are chain ends Din 766 made of?
Chain ends DIN 766 are manufactured according to DIN 766 standard. The materials that CICSA uses to produce these steel chains are micro-alloy steels specially designed by steelworks, with high Mn content for type 2H, and NiCr and NiCrMo alloys for the other types.
Is the hot dip galvanized short link chain calibrated to din766?
Hot dip galvanized short link chain is calibrated to latest DIN766 standard. Each link is calibrated to ensure proper fit for most metric windlasses. Check manufacturer’s specification prior to purchase.
What is the difference between din766 G30 and G43 windlass chain?
DIN766 G43 Windlass Chain uses a high tensile strength carbon steel, specifically designed for anchoring applications, that provides a greater strength-to-weight ratio than DIN766 G30. Hot dip galvanized short link chain is calibrated to latest DIN766 standard. Each link is calibrated to ensure proper fit for most metric windlasses.
