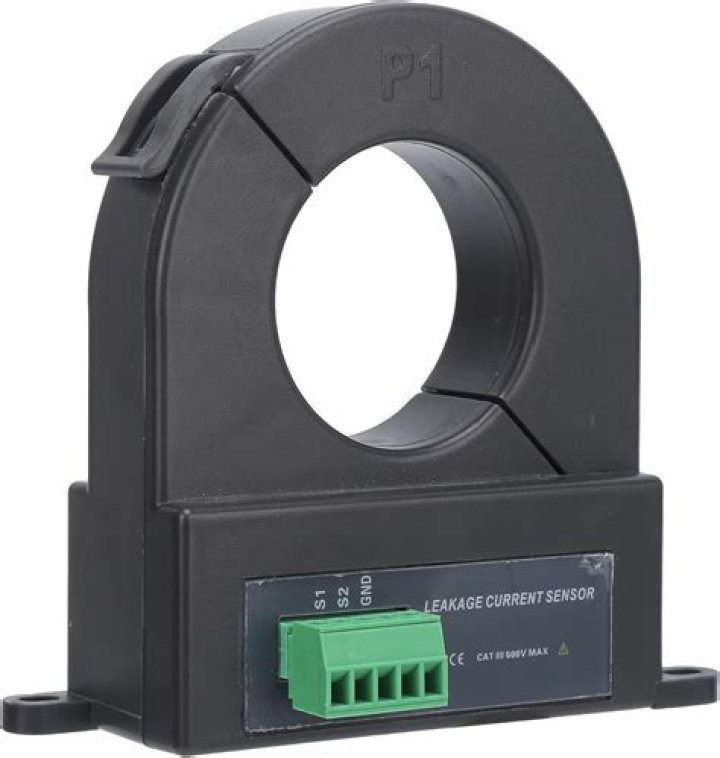

What is DC current sensor?

Eaton DC Current Sensors are a family of Hall-effect sensors used to measure the current flow in a wire. Eaton DC Current Sensors are optimally ruggedized for transportation applications with outstanding environmental performance characteristics.

How does a DC current sensor work?

How do current sensors work? When current flows through a conductor, it creates a proportional magnetic field around the conductor. The sensor then outputs a certain voltage or current that a meter connected to the sensor can read and translate into the amount of current flowing through the conductor.

What is DC voltage sensor?

A voltage sensor is a sensor used to calculate and monitor the amount of voltage in an object. Voltage sensors can determine the AC voltage or DC voltage level. The input of this sensor is the voltage, whereas the output is the switches, analog voltage signal, a current signal, or an audible signal.

How do you monitor DC voltage?

To ensure maximum accuracy of a dc voltage measurement, first measure and record the ac voltage. Then measure dc voltage by selecting a dc voltage range (using the RANGE button) that is the same or higher than the ac voltage range. Some DMMs can simultaneously measure and display the ac and dc components of a signal.

What is electric current sensor?

Electrical current sensors detect the flow of current along an electrical wire by measuring (or sensing) the magnetic field that is generated by the flow of electrical current. The sensors output signals that are transmitted to data loggers.

What is the purpose of current sensor?

A current sensor is a device that detects and converts current to an easily measurable output voltage, which is proportional to the current through the measured path. There are a wide variety of sensors, and each sensor is suitable for a specific current range and environmental condition.

How do you monitor DC current?

Here are strategies for monitoring DC current: Monitor total load demand and net charge supplied to the House battery….

1. Monitor Total Load Demand, and Net Charge to House Battery.
2. Monitor Alternator Output.
3. Monitor One Load.
4. Monitor with Hand-Held Clamp Meter.

What is a DC current transformer?

The DC Current Transformer (DCCT) is a type of DC-capable ‘current transformer,’ which produces an output current proportional to the input current – all the way down to DC. Applications include precision power measurement and current control for the Large Hadron Collider magnets.

What is a voltage sensor?

A voltage sensor is going to be able to determine and even monitor and measure the voltage supply. It is then able to take those measurements and turn them into a signal that one will then be able to read.

What is AC voltage detector?

The following are the four different types of voltage detector: High frequency AC voltage detector (Spark tester) – This detector employs a Tesla coil to produce high voltage. It is usually mains powered, and it can detect voltages in excess of 50,000 V. During operation, a blue brush discharge can be observed around an electrode.

What is voltage monitoring relay?

Voltage Monitoring Relays. The Voltage Monitoring Relay is a protective device for three-phase, Wye, or Delta connected, 3 wire, power distribution networks supplying motor circuits. It may be installed in a motor feeder and control the supply to a number of motors or in a motor branch circuit to protect a single motor and its load.

What is a voltage controlled relay?

Voltage relays are electrical devices in which the primary function is the switching of current from one circuit to another. The use of a relay makes it possible to control a large amount of current with a small amount of current. The relay is activated remotely using an electrical signal.
