What is continuous electrodeionization?
Sarah Parker What is continuous electrodeionization?
CEDI is a water treatment process that uses a combination of ion-exchange resins, ion-exchange membranes and direct current to continuously deionize water without the need for chemicals. CEDI technology avoids using chemicals, helps to reduce the systems’ operating and maintenance costs and improves your bottom line.
How does electrodeionization work?
When installed as part of a water-treatment system, electrodeionization modules from DuPont Water Solutions use electrical current to force a continuous migration of contaminant ions out of the feedwater and into the reject or concentrate stream, while continuously regenerating the ion exchange (IX) resin bed with H+ …
How does an electro Deionisation work?

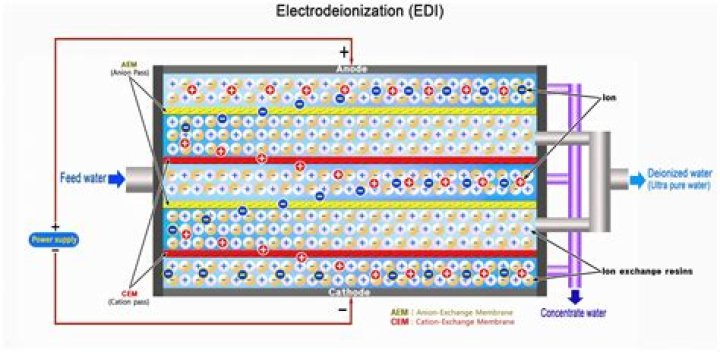

An EDI stack has the basic structure of a deionization chamber. The chamber contains a ion exchange resin, packed between a cationic exchange membrane and a anionic exchange membrane. The strong, applied electrical potential splits water at the surface of the resin beads, producing hydrogen and hydroxyl ions.
What is EDI in ro plant?
Electrodeionization (EDI) is an electrically-driven water treatment technology that uses electricity, ion exchange membranes and resin to remove ionized species from water.
What is EDR water treatment?
Electrodialysis reversal desalination, commonly abbreviated EDR, is a water desalination process in which electricity is applied to electrodes to pull naturally occurring dissolved salts through an ion exchange membrane to separate the water from the salts.
How do you clean an EDI?
The sanitization has to be carried by soaking and flushing the system with 80 – 100 ppm of free chlorinated water. The system will be sanitized from the soft water tank to inlet of EDI inlet pipe. The 80 – 100 ppm of free chlorine solution will be prepared in the soft water tank.
Does EDI remove TOC?
CC: TOC typically does not get removed by mixed bed or EDI. The reason why TOC tends not to be removed is because its does not to have a charge on it.
How does reverse electrodialysis work?
Reverse electrodialysis (RED) is practically a salt battery that uses the transport of (salt) ions through membranes [98]. It consists of an array of alternating positively and negatively charged exchange membranes. Every membrane has fresh water on one side and salt water on the other side.
What is Csro and Hsro?
CSRO ( Chemically Sanitization Reverse Osmosis) Ozone sanitization. HSRO (Hot water sanitization Reverse Osmosis)
How does electro dialysis work?
Electro Dialysis (ED) is a membrane process, during which ions are transported through semi permeable membrane, under the influence of an electric potential. By placing multiple membranes in a row, which alternately allow positively or negatively charged ions to flow through, the ions can be removed from wastewater.
How is RO different from electrodialysis?
Whereas RO is dependent on high pressure for its membrane treatment, ED works by cross-flow separation using ion exchange (IX) membranes, which is a low-pressure/tangential flow process.
What is continuous electrodeionization (CEDI)?
For this reason, industrial businesses across the globe continuously seek ways to reduce overall operational spending without sacrificing efficiency and product quality. Continuous electrodeionization (CEDI) is an effective water purification process that polishes reverse osmosis (RO) permeate to deliver high-purity water.
How does cedi technology remove ions?
Ionpure CEDI technology removes ions from water using a unique combination of ion exchange membranes, ion exchange resins and electricity. For more information, check out
What is electrodeionization and how does it work?
As the water becomes purer, the system’s voltage requirement increases — even exceeding 600 volts — which can cause arching. Electrodeionization resolves this challenge by introducing ion exchange (IX) resins, or ionically conductive media, into the central chamber.
What is the difference between continuous electrodeionization and ion exchange?
The exhausted resins then require offline chemical regeneration before reuse. Like conventional ion exchange, continuous electrodeionization removes dissolved, ionizable materials, including salts, acids, and bases. It also has the ability to remove weakly ionized materials, such as dissolved silica, carbon dioxide, and some organics.
