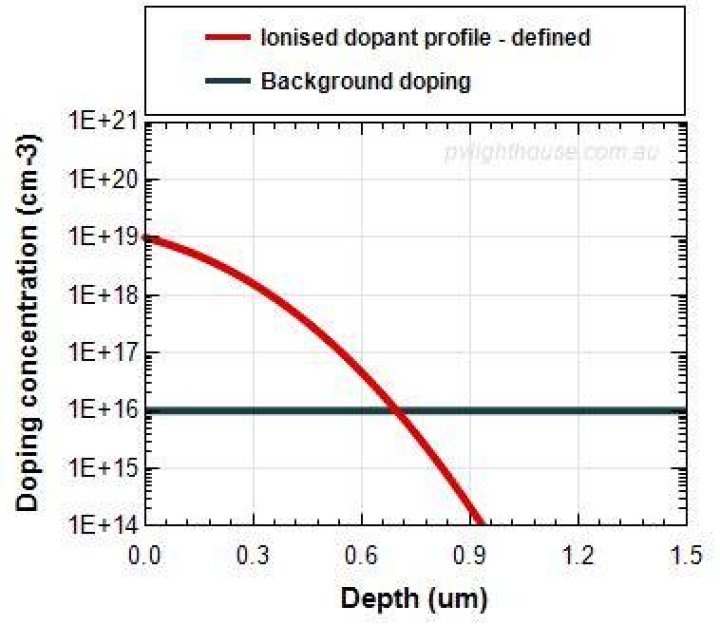

What is background doping concentration?
Andrew Rivera What is background doping concentration?
Background doping can significantly affect the physical properties of a semiconductor. Therefore, measure the electrical properties of your semiconductor. If it is not enough n- or p-type conductive measure by SIMS, Auger, etc. the concentration of nonintentionally introduced species.
What are doping levels?
Even degenerate levels of doping imply low concentrations of impurities with respect to the base semiconductor. In intrinsic crystalline silicon, there are approximately 5×1022 atoms/cm3. Doping concentration for silicon semiconductors may range anywhere from 1013 cm−3 to 1018 cm−3.
What is p-type and n-type doping?
In n-type doping, arsenic or phosphorus is added in small quantities to the silicon. In p-type doping, boron or gallium is used as the dopant. These elements each have three electrons in their outer orbitals. When they are mixed into the silicon lattice, they form ‘holes’ in the valence band of silicon atoms.
What is called doping?
Doping is the process of adding impurities to intrinsic semiconductors to alter their properties. Trivalent and Pentavalent elements are used to dope silicon and germanium. When a intrinsic semiconductor is doped with trivalent impurity it becomes a p-type semiconductor.
What is heavily doped?
heavily doped means more concentration of the charge carriers, which causes the increase in conductivity and hence becomes metallic like characteristics. Cite.
What are two types of doping?
There are two types of dopants, n-type dopants and p-type dopants; n-type dopants act as electron donors, and p-type dopants act as electron acceptors.
Is led heavily doped?
Explanation: A light emitting diode, LED, is heavily doped. It works under forward biased conditions. When the electrons recombine with holes, the energy released in the form of photons causes the production of light. The reverse breakdown voltage of LED is very low.
What is blood doping in athletes?
Blood doping is the misuse of certain techniques and/or substances to increase one’s red blood cell mass, which allows the body to transport more oxygen to muscles and therefore increase stamina and performance.
What is the difference between high doping and low doping?
When on the order of one dopant atom is added per 100 million atoms, the doping is said to be low or light. When many more dopant atoms are added, on the order of one per ten thousand atoms, the doping is referred to as high or heavy. This is often shown as n+ for n-type doping or p+ for p-type doping.
What is the concentration of doping in silicon semiconductor?
Even degenerate levels of doping imply low concentrations of impurities with respect to the base semiconductor. In intrinsic crystalline silicon, there are approximately 5×10 22 atoms/cm 3. Doping concentration for silicon semiconductors may range anywhere from 10 13 cm −3 to 10 18 cm −3.
What is the doping gradient and how does it work?
The doping gradient due to the abrupt change in doping concentration at the pn-junction results in electrons (free majority carriers in the n-region) diffusing from the n-region into the p-region and holes (free majority carriers in the p-region) diffusing into the n-region.
What is the background doping of a crystal?
Background doping is not always intentionally done. When you grow a crystal in a furnace, the residual dopant atoms in the chamber (despite high vac) will get into the crystal. The good thing about this doping is it is quite uniform, and typically quite low.
