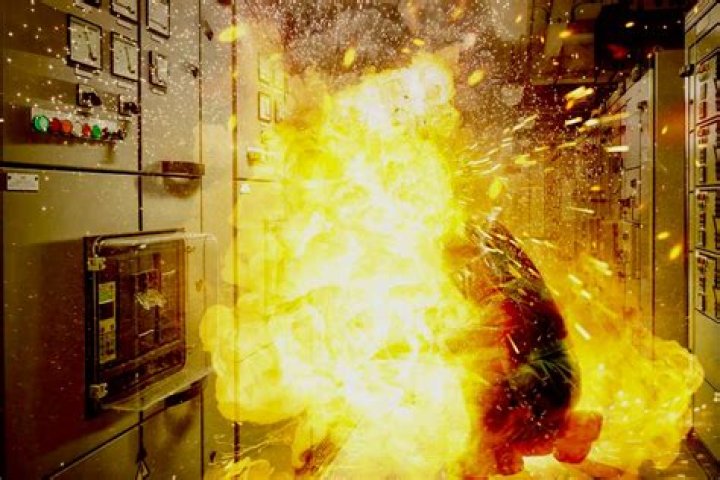

What is an arc flash explosion?

It is an electrical explosion due to a fault condition or short circuit when either a phase to ground or phase to phase conductor is connected and current flows through the air. Arc flashes cause electrical equipment to explode, resulting in injury or death to workers and destruction of electrical equipment.

What causes arc flash switchgear?

Arc flash can also be caused due to: Improper tools, installation and work techniques. Lack of electrical safety awareness and training. Dust, debris and corrosion on electrical conductors. Improper preventative maintenance for circuit breakers and switches.

What causes arc blasts?

In less than a second, an arc flash is initiated from a phase to ground or a phase to phase fault. It can result from accidental contact with the electrical systems, the buildup of conductive dusts, corrosion, dropped tools, or improper work procedures.

What causes arc flash and arc blast?

An Arc Flash is an energy discharge of light and heat that forms when a fault occurs in an electrical circuit. An Arc Blast, separate from an Arc Flash, is a supersonic shockwave produced when the uncontrolled arc vaporizes the metal conductors.

Can arc flash cause an explosion?

When a short circuit (or arc flash) occurs, it can often cause arc blast, a type of highly dangerous electrical explosion.

What are the effects of an arc blast?

Pressure waves generated by an arc flash explosion can carry a force up to thousands of pounds per square inch, which is powerful enough to knock down or throw nearby workers, and cause damage to the eardrums, lungs, brain and other organs. Other effects of arc blast include: Searingly high temperatures.

Is an arc blast An explosion?

An arc blast is the name given to the explosive burst of energy that occurs during an arc flash. An arc blast occurs as the result of a malfunction in the insulation between two energized phase conductors on high powered electrical equipment.

What happens during an arc blast?

Arc blast occurs when electricity passing through two conductors jumps through the air. At this temperature, the conductive materials vaporize and a pressure wave forms, throwing shrapnel and creating an incredible pressure wave. The arc blast itself has enough energy to throw a person across a room.

Can 240v cause arc flash?

Results suggest that 240 V single-phase panels and equipment common in residential and light commercial applications may be at very low risk of yielding arc flash burn-related injuries.

What are arc flash explosions and how dangerous are they?

During the course of an arc flash within enclosed equipment, severe pressure can build up over time which can result in a massive explosion which can prove to be fatal to personnel nearby.

What causes an arc flashover?

There are several reasons for an arc flashover taking place in a medium voltage switchgear. What causes arc flash can be summarized as follows: Electrical equipment can be damaged as well with flashovers over 50kV resulting in permanent damages to the insulation, electrical fires etc.

What is arc resistance switchgear and how it works?

Therefore, the arc resistance switchgear has been designed in order to channel the flow of the pressurized arcing energy away from adjacent personnel and equipment. It has a strong structure capable of withstanding the pressure and discharging the gases through a built-in exhaust supported by vents.

Why are arc flash hazards of greater concern in medium-voltage switchgear?

There are many reasons why mitigation of arc flash hazards is of greater concern in medium-voltage equipment. First, medium-voltage switchgear occupies a higher hierarchical position in most radial distribution systems.
