What is a PACS Client?

PACS Clients: computers with a DICOM viewer software, like OsiriX. These PACS Clients can query and retrieve the DICOM images from the PACS server, by using the DICOM network protocol (DICOM C-Move, C-Store, C-Get, C-Find, WADO, …).

How do I access PACS?

Desktop and Web Access The IntelliSpace PACS Enterprise and IntelliSpace PACS Radiology clients can be accessed through the use of the desktop application, which requires installation. The IntelliSpace PACS Enterprise client can also be accessed through a web browser using Internet Explorer version 10 or 11.

How do I set up a PACS server?

To configure the server:

1. Enable and set up the DICOM service (section 12.1. 1), set AE Title as VIEWER-SERVER, set Port as 3001.
2. Add a client in the Set Up PACS Server Connection window (section 12.2. 1). Set the following parameters for the fields: for field Server type — DICOM; for field Server mode — C-MOVE;

How do I get PACS photos?

Make the following changes: a. Click on Export images tab and select Save to Disk. b. Export: Select either All images from Series, Significant Images or Selected Images.

What is PACS computer?

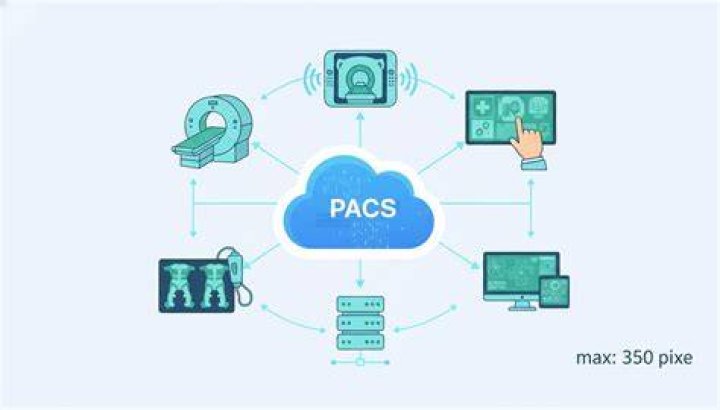

A picture archiving and communication system (PACS) is a high-speed, graphical, computer network system for the storage, recovery, and display of radiologic images (ultrasound, x-ray, computed tomography, positron emission tomography, endoscopy, and magnetic resonance imaging).

How does a PACS server work?

Simply put, PACS is a picture archiving and communications system. This system electronically stores images and reports, instead of using the old method of manually filing, retrieving and transporting film jackets, which are used for storing X-ray film.

Is PACS a software?

A radiology PACS system combines software and hardware for the purpose of storing images on both a short and long-term basis. Radiology PACS systems offer a much more efficient method for distributing, retrieving and managing medical images.

What language is used by PACS?

The clinical PACS uses an object-oriented Oracle SQL (systems query language) database, and interfaces to the Radiology Information System using the HL7 (Health Languages 7) standard.

How do I get Dicom images from PACS?

Your PACS viewer will typically have an ‘Export’ function in the file menu. Keep in mind that different PACS systems have different user interfaces and different features. Your IT department or radiology department can assist you in finding the Export function.

What is PACS server in medical imaging?

A PACS (Picture Archiving and Communication System) server is a computer for the short- and long-term storage, retrieval, management, distribution and presentation of medical images. Medical equipment can automatically store the medical images on the PACS server.

What is pacssoft PACs?

PACSsoft PACS is a complete web/ cloud-based PACS/ DICOM solution, based on 14 years of engineers who build a very successful DICOM server with DICOM viewer.

What are the system requirements for the PACS clients?

For the PACS Clients: choose iMac or MacPro, depending if you need to do 3D post-processing or only 2D viewing. If needed, connect a Medical monitors (Totoku, Eizo, …). A SSD is highly recommended for best performances when loading the images. Select at least 8GB of RAM.

What is intellispace PACs Web package?

IntelliSpace PACS Web Package provides a web based PACS access that is almost identical to the full client application and will satisfy the needs of most Health Care Providers in the Province. It is ONLY supported on Internet Explorer 10 or 11.
