What does a thread repair insert do?

Thread Repair Inserts are used to quickly and permanently restore tapped holes, which have been stripped or damaged due to wear, corrosion or over torque.

What Size drill bit for M12 helicoil?

Sitemap

What is the difference between tapping oversize and a thread repair insert?

Two types of Heli-Coil thread repair kits are available for correcting tapping errors to STI and standard tapped holes. Oversize™ inserts are primarily used to correct Heli-Coil insert assemblies that gage oversize due to tapping errors.

What is the advantage of using a helicoil when repairing a threaded hole?

HELICOIL® is the preferred choice of many leading engineers worldwide who need to strengthen, reinforce or repair screw threads in soft alloy components. HELICOIL® inserts ensure high-strength threads, transferring forces from flank to flank into the holding thread.

What is used for thread repair?

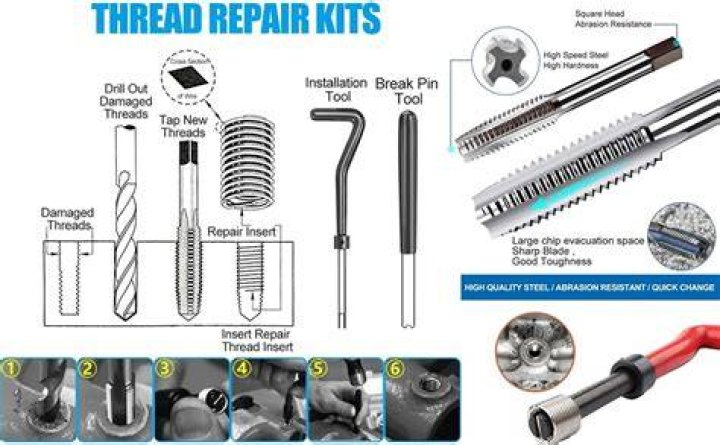

A thread repair kit consists of a tapping tool, an insertion tool and some thread inserts. A drill and a tap wrench will also be required to use the thread repair kit. The drill bit may or may not be included in the kit.

Which is better HeliCoil or Time-Sert?

After doing a bit of research it sure seems to me that the Time-Sert is the clear choice for a more full-proof ‘permanent” fix. The only advantage to a Helicoil I found, is that it is cheaper. Being in the industry for a little while I have seen time and time again, that cheaper is never better.

What is the difference between helicoil and insert?

Unlike helicoils which have a slim profile, inserts are extremely large and require a large external thread for installation. The second most common flaw is the removal process. Removal requires drilling out material, bending the key insert and utilizing a screw extractor to remove the insert.

What is better than a helicoil?

Time Sert inserts for head bolt applications are much thicker than the Helicoil brand. They are more like a solid metal bushing which is threaded on the inside and out. The Time Sert brand insert is installed with a special driver.

What are thread repair kits and how do they work?

Any of these situations can throw a wrench into your DIY plans. Fortunately, thread repair kits take care of this frustrating issue quickly. Dies help you form external threads on rods, bolts and connectors, while taps are designed to redefine worn internal threads and cut new threads.

How hard is it to install an insert?

When the job is done correctly, inserts can stand up to OEM torque and pressure requirements in high-stress locations. The insert-installation process isn’t complex as long as you have the right tools: a correctly-sized drill and drill bit, tap, insert, installer tool, hammer and punch.

Why do I need an insert instead of a tap?

If over-tightening or incorrect bolt choice leads to a completely-stripped hole, taps may not be enough to guarantee a solid hold. That’s when you need to install an insert instead. Inserts have threads on both the inside and outside surfaces.

How many tapered threads does a tap have?

Bottoming taps have around three to four tapered threads, while plug taps only have one. External threads can be trickier. To maintain structural integrity, you can’t use a die to cut threads smaller than before. You can only recut to the same diameter.
