What do the numbers mean on a universal beam?
Daniel Rodriguez What do the numbers mean on a universal beam?
The “W” indicates that it is a wide flange beam (as opposed to, say, an S beam); the “14” is referenced as section number; and the “211” indicates that the beam weighs 211 lbs per foot. You should note that the permissible variations from the specified dimensions can range from 1/8in to 5/16 depending on the beam size.
What do the numbers on a steel beam mean?
The nomenclature for steel shapes follows two standards: For wide flange, bearing pile, S-shapes, channels, and tees: the letter indicates the shape, the first number indicates the nominal height, and the second number indicates the weight per 1 foot of length.
What does UB mean in steel beams?
universal beam
An I-beam, also known as H-beam (for universal column, UC), w-beam (for “wide flange”), universal beam (UB), rolled steel joist (RSJ), or double-T (especially in Polish, Bulgarian, Spanish, Italian and German), is a beam with an I or H-shaped cross-section.
How do you read a universal beam?

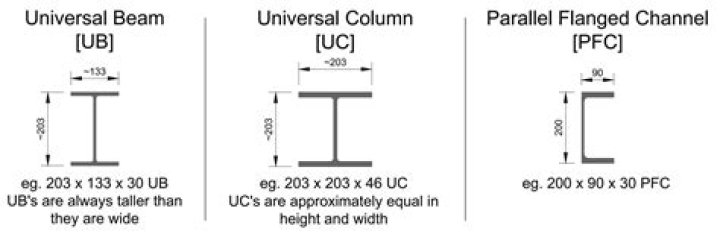

UC – universal column or UB – universal beam. Unlike a universal beam, the UC’s width is roughly equal to their depth. For example, a 152 UC 23 is 152 mm wide and 152 mm deep and 152*89 UB 16 is 89mm wide and 152mm deep. The last number (23 in this example) is the weight per meter in kilograms.
How do you read steel beam size chart?
WIDE FLANGE BEAM DIMENSIONS CHART
| Wide Flange Beam Sizes, Dimensions and Section Properties Chart | ||
|---|---|---|
| Desig- nation | Nom. Weight, lb/ft | Axis X-X |
| W27 x 161 | 161 | 455 |
| W27 x 146 | 146 | 411 |
| W27 x 114 | 114 | 299 |
What is the difference between a UB and UC?
What is CHS steel?
Less known is the term CHS, this stands for Circular Hollow Section. These terms are widely used to describe mild steel; however, they can also be translated for stainless steel and aluminium engineering and construction by engineers who are familiar with the terminology.
What is WPB in structural steel?
Wider Flange Parallel Beam or WPB or HE as it often knows are wider sections available in Parallel Flange Beams. These find application in various Heavy Structural Fabrication works across the country and the vast range availability has reduced the need of fabricating the beams in house by the customers.
