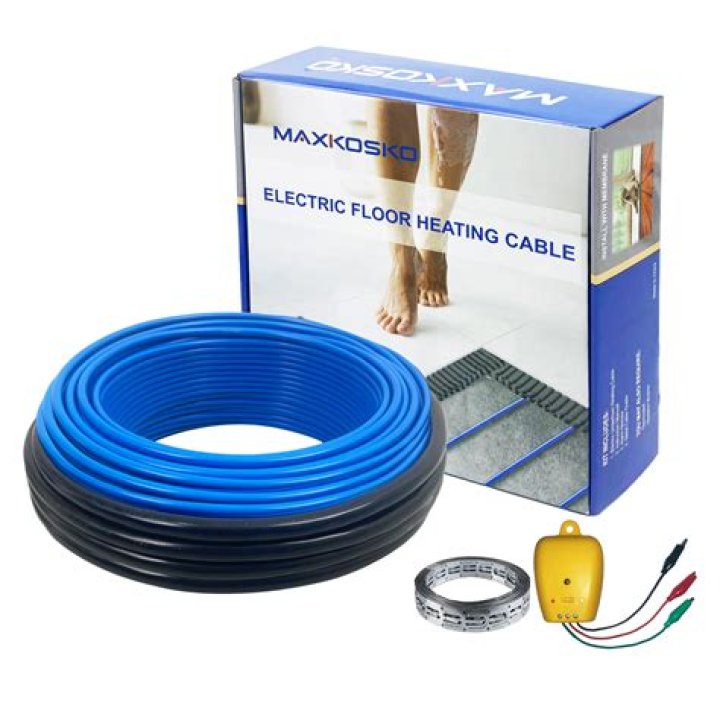

What cable is used for underfloor heating?

150w/m2 underfloor heating cables are suitable as a primary heating source providing you have adequate insulation. Cable must be spaced 6.5cm apart to acheive correct wattage output. These are our most commonly used cables for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.

Can you extend underfloor heating cable?

If the floor probe or power supply cables are too short upon installation, both of them can be extended and must be altered by a qualified and certified electrician only. Both cables require a different type of extension. The power supply cable can be extended with suitable twin and earth cable.

Can you cut Nuheat cable?

Nuheat Cable cannot be overlapped, crossed, cut, shortened or modified.

How do I find a break in underfloor heating cable?

Always start with getting the Ohms readings from the floor circuit. If the readings are open or infinite from one core wire to the other core wire, you have a break. If you have Ohms readings between either core wire and the ground sheathing, you have a short circuit.

What power supply do I need for underfloor heating?

All Warmup electric underfloor heating systems require a 230 VAC supply and it is recommend that your floor heating system be placed on a dedicated circuit to power your heating system.

How many amps does underfloor heating use?

Most Electric Underfloor Heating Thermostats have a maximum loading of 16 amps, a 10sqm Under Tile floor Heating Mat at 150 watts per sqm has a amperage of 6.5 amps.

Can underfloor heating pipe be joined?

We offer a range of underfloor heating pipe repair fittings the same fitting can also be used for joining two underfloor heating pipes together when pipework needs extending.

How do you turn off a Nuheat home?

To place the thermostat in Off mode, press the Mode button until the message OFF appears on the screen. After 5 seconds, the message will disappear and current time and day will appear.

Why does my underfloor heating keep tripping?

The underfloor heating system will trip the RCD if a fault has been detected. An electrician will need to test the system and ensure that it is not an issue with the RCD or electrical installation. If you do not get a reading (open circuit) this indicates that there is a break in the underfloor heating system.
