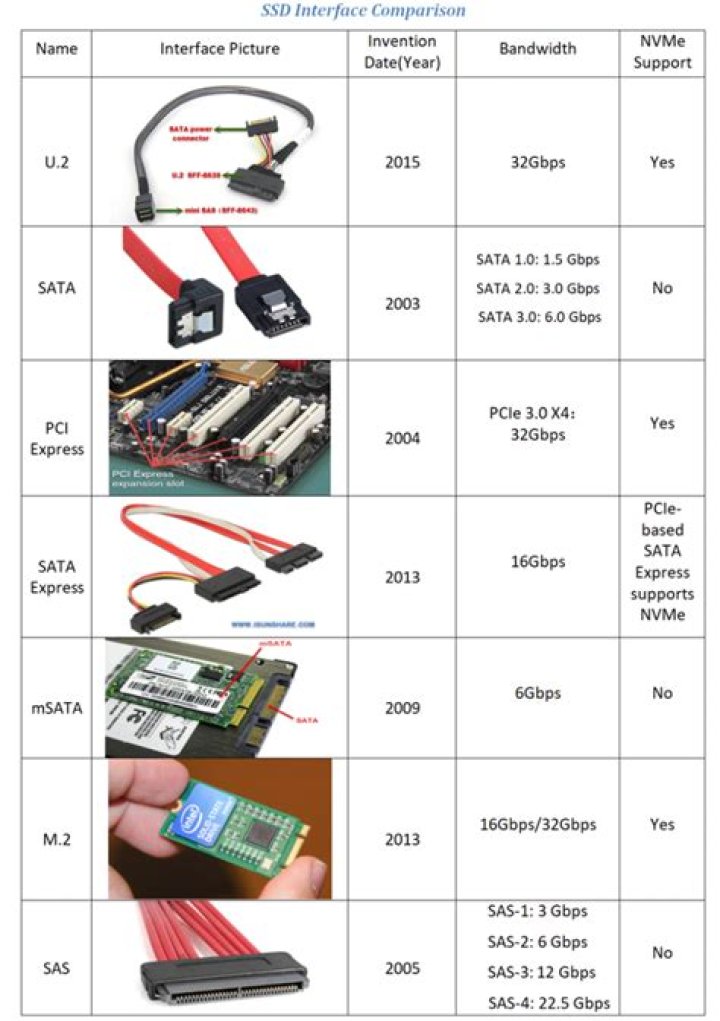

What are the different types of SATA connectors?

There are three main types of SATA cable connections for computers: standard two-connection SATA cables, three-connection SATA cables, and eSATA cables.

Can SATA drives be hot plugged?

Shut down the PC and put the drive inside. SATA spec support hotplug, but your controller card must implement it for it to work.

What is SATA configuration hot plug?

Hot plugging is the addition of a component to a running computer system without significant interruption to the operation of the system. Hot plugging a device does not require a restart of the system. This is especially useful for systems that must always stay running, such as a server.

What is SATA port Hot Plug capability?

Hello! I read on the internet that SATA hotplug is a feature that allows you to attach and remove a SATA drive the same way you do with USB sticks.

Is 4 pin CPU connector necessary?

4 pin is for extra stability when overclocking etc. It is not necessary to use the additional 4 pin connector if you’re not pushing the board or CPU too hard. Basic everyday computing and gaming won’t require it. It’s definitely not needed for normal operation or even a slight overclock.

Are SATA cables hot-pluggable?

I’ve found diverging instructions on the ’net about this. To recap: SATA with the 4-pin Molex (white) power plug is not hot-pluggable, but either the wide connector or the separate (15-pin power and 7-pin data) connectors are. However, in which order do I plug the cables in?

Is SATA with 4-pin Molex power plug hot plugable?

To recap: SATA with the 4-pin Molex (white) power plug is not hot-pluggable, but either the wide connector or the separate (15-pin power and 7-pin data) connectors are. However, in which order do I plug the cables in?

What are the features of SATA cable connectors?

Following are the features of the SATA cable connectors: SATA Data cables has 8mm wide wafer connectors on each end. These connectors have seven conductors and can be up to one meter long. These connectors have their either ends connected to the motherboard and the hard drive.

What is the best order to connect a SATA drive?

But, again, the specification allows connection in any order, and should work fine in any order. The connection of a SATA device to a host system that is already powered. The SATA device is already powered or powered upon insertion/connection.
