What are the common errors in GPS?

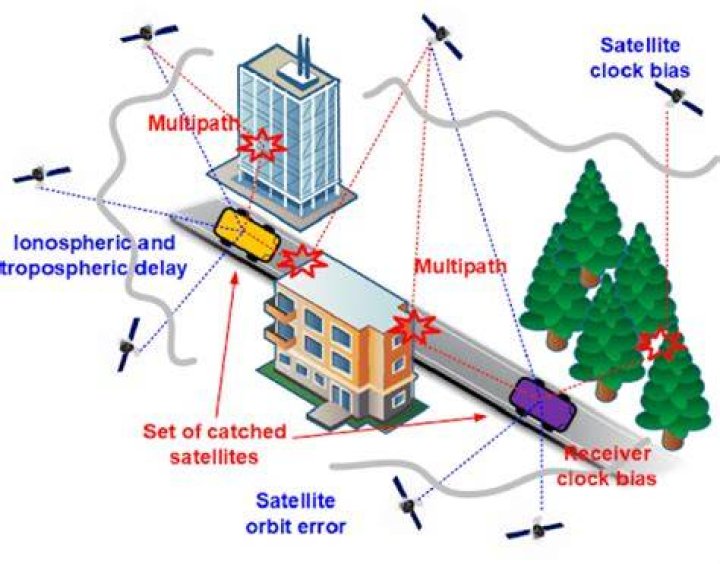

The major sources of GPS positional error are:

Atmospheric Interference.
Calculation and rounding errors.
Ephemeris (orbital path) data errors.
Multi-path effects.

What is user range error?

The term user equivalent range error (UERE) refers to the error of a component in the distance from receiver to a satellite. These UERE errors are given as ± errors thereby implying that they are unbiased or zero mean errors. These UERE errors are therefore used in computing standard deviations.

What are the errors or limitation of GPS?

The accuracy of GPS depends on sufficient signal quality received. The GPS signal is affected by the atmosphere (i.e. multipath) Electromagnetic interference, ionosphere etc. This results in an error in the GPS signal of about 5 to 10 meters. However, different receivers have different levels of accuracy.

What is URA in GPS?

User Range Accuracy (URA) is a statistical indicator of the GPS ranging accuracy obtainable with a specific signal and SV. URA provides a conservative RMS estimate of the user range error (URE) in the associated navigation data for the transmitting SV.

What causes GPS inaccuracies?

Many things can degrade GPS positioning accuracy. Common causes include: Satellite signal blockage due to buildings, bridges, trees, etc. Signals reflected off buildings or walls (“multipath”)

How do you fix GPS errors?

Follow these instructions if you have a problem caused by mapping errors in your own GPS device or app….

1 Update your device. Make sure your device has the latest version of its navigation software and map data.
2 Submit a correction through your device.
3 Submit a correction online.
4 Wait patiently.
5 Understand.

How can I reduce GPS error?

Buildings, trees, tunnels, mountains, clothing, and the human body can prevent GPS signals from the satellites reaching the receiver. When possible, put a GPS receiver in a place where it has a clear and unobstructed view of a large portion of the sky.

Can GPS be harmful?

One of the biggest dangers of GPS and related navigation technologies is over-reliance. In the event that a signal can’t be found or the device’s battery dies, you can easily find yourself lost in an unfamiliar area.

What are the limits of GPS technology?

Limitations of GPS Global Positioning Systems (GPS) are generally useless in indoor conditions as radio waves will be blocked by physical barriers, such as walls, and other objects. Also, regular GPS cannot pinpoint locations to greater than 3-m accuracy.

What is user range accuracy?

The user range accuracy (URA) transmitted in navigation message for each satellite is a conservative estimate of SIS error and can be mainly used for integrity monitoring. Therefore, investigation of URA is important.

What is the user range error of the GPS signals in space?

The user range error (URE) of the GPS signals in space is actually the same for the civilian and military GPS services. However, most of today’s civilian devices use only one GPS frequency, while military receivers use two. Using two GPS frequencies improves accuracy by correcting signal distortions caused by Earth’s atmosphere.

What is UERE (user range error)?

See figure above. The UERE is the ranging error between a satellite and the user’s receiver. It can be shown as a distance that includes both the signal in space ranging error called URE (User Range Error) and the user equipment error (UEE).

What is the difference between GPS range and Ure?

To calculate its position, a GPS device measures its distance (range) from multiple GPS satellites. URE is a measure of ranging accuracy. User accuracy refers to how close the device’s calculated position is from the truth, expressed as a radius.

What is the difference between user range error and accuracy?

User Range Error (URE) vs. User Accuracy. To calculate its position, a GPS device measures its distance (range) from multiple GPS satellites. URE is a measure of ranging accuracy. User accuracy refers to how close the device’s calculated position is from the truth, expressed as a radius.
