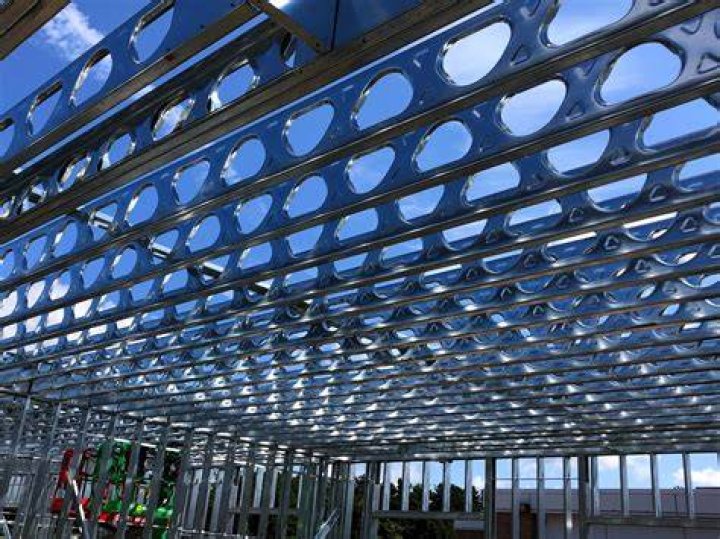

What are open webbed steel joists used for?
Daniel Rodriguez What are open webbed steel joists used for?
The main function of an OWSJ is to provide direct support for roof or floor deck and to transfer the load imposed on the deck to the structural frame i.e. beam and column.
What is the maximum span for a K series open web steel joist?
60 feet
The K-Series joists are standardized in depths from 10 inches (254 mm) through 30 inches (762 mm), for spans up through 60 feet (18288 mm).
How much do steel bar joists cost?
Bar joist are $24.00 per foot on sizes of 10′, 16′, 20′ and 24′ feet. 30′ feet is available for $27.00 per foot.
How are open web steel joists?
Today, open web steel joists are one of the most commonly used framing systems for floors and roofs in buildings. These joists were made by pressing the sheets into the form of channels and welding them back-to-back, giving the appearance of light I-shaped beams.
How far can a 2×6 metal joist span?
A 2×6 spaced 16 inches apart can span a maximum distance of 13 feet 5 inches when used as a rafter, 10 feet 9 inches when used as a joist, and 6 feet 11 inches when used as a deck beam to support joists with a 6-foot span.
How are open web steel joists made?
How long are steel beams?
A residential steel beam is very common in most homes. Most are 8 inches tall, but 10 or 12-inch-high beams allow you to span greater distances with fewer pesky columns.
How far can bar joists span?
K Series joists range in depth from 10” to 30” and can span up to 60′.
How far apart are bar joists?
eight feet apart
Open-web steel bar joists can be spaced up to eight feet apart, depending on the size of the steel used and the roof load.
What size steel joist do I need?
To calculate the necessary depth of a beam, divide the span (in inches) by 20. For example, a 25′ span would be 25×12 / 20 = 15”. The width of this beam would be between 1/3 and ½ the depth.
What is an open web truss?
Open-Web Trusses. Since its introduction in 1960, the open-web truss has become one of the most widely used engineered wood building products in commercial construction. Open-web trusses are lightweight, easy to install, and have nailable chords for easy attachment of roof decking and ceiling materials.
What is a joist beam for an opening?
A joist is a horizontal structural member used in framing to span an open space, often between beams that subsequently transfer loads to vertical members. When incorporated into a floor framing system, joists serve to provide stiffness to the subfloor sheathing, allowing it to function as a horizontal diaphragm.
What size are floor joists in residential construction?
Joist Sizes. The wood boards used as floor joists generally range in size from no smaller than 2-by-4 inches to no larger than 2-by-12 inches. Two-by-6 inches is a joist size frequently used in both indoor floors and as deck joists.
What is steel joist?
In structural engineering, the open web steel joist (OWSJ) is a lightweight steel truss consisting, in the standard form, of parallel chords and a triangulated web system, proportioned to span between bearing points.
