What are handle ties for breakers?
Carter Sullivan What are handle ties for breakers?

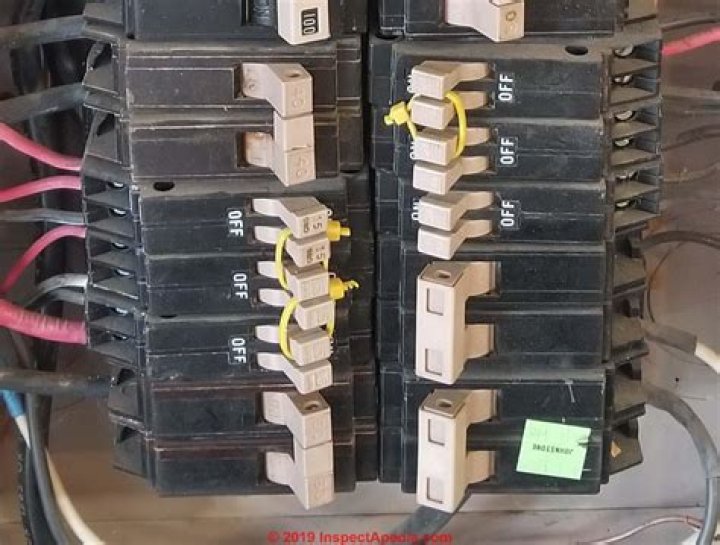

Handle ties connect GE circuit breakers to convert two adjacent single pole breakers into a double pole circuit breaker or to tie two circuit breaker handles together. In the event of an overcurrent or short circuit, both breakers will trip to prevent damage to the system.
What is a handle tie?
Handle Tie, Molded Plastic Handle. Used with THQL & THQB Series Circuit Breakers for physically joining the handles of (2) adjacent 1-Pole Breakers. Handle Tie, Molded Plastic Handle Cover. Used with CH Type Circuit Breakers for physically joining the handles of two adjacent 1-Pole Breakers.
Can I replace a double pole breaker with two single pole breakers?
Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.
Can you tie three single pole breakers together?
Since circuit breaker handle ties are not designed for connection to three single-pole circuit breakers (only two), a three-pole internal trip circuit breaker must be used. Therefore, article 210.4(B) requires that the circuit breakers be tied together.
How do you install a tie handle?
Starts here1:28Installing HOM1HT Handle Tie (Independent Trip) on 1 Phase …YouTube
Does a double 15 amp breaker equal 30 amps?
Answer: Yes, because the breaker draws 30 amps from each leg 1 leg per each busbar. You might be better using two individual 30 amp breakers since a double breaker has a connection bar and both sides will trip if either leg trips.
Does Qo have a pickup for tandem Breakers?
Curbside pickup available. Convert any 2 adjacent tandem single pole breakers to an independent trip double pole circuit breaker with the QO Circuit Breaker Handle Tie for QO Tandem Breakers. The tie offers UL and CSA listings for safety.
How do you convert a tandem breaker to a double breaker?
Convert any 2 adjacent tandem single pole breakers to an independent trip double pole circuit breaker with the QO Circuit Breaker Handle Tie for QO Tandem Breakers. The tie offers UL and CSA listings for safety. This handle tie is suitable for QO circuit breakers rated 120/240 VAC.
What are the UL and CSA listings for the handle tie?
The tie offers UL and CSA listings for safety. This handle tie is suitable for QO circuit breakers rated 120/240 VAC. You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
What is Square D’s warranty policy?
Square D warrants equipment manufactured by it and sold through authorized sales channels to be free from defects in materials and workmanship for eighteen (18) months from date of invoice by Square D or its authorized sales channel. How can we improve our product information? Provide feedback.
