What 2 parts are in a heat pump?

A typical air source heat pump system consists of two major components, an outdoor unit (which looks just like the outdoor unit of a split-system air conditioning system) and an indoor air handler unit. Both the indoor and outdoor unit contain various important sub-components.

What is a 2 stage compressor heat pump?

A two-stage compressor allows the heat pump to cool or heat at different levels: High (full blast) and low for milder days. Well two-stage heat pumps run more often, while using less energy. This helps you: Save money because it’s starting and stopping less.

Is a two-stage compressor worth it?

Benefits of Two-Stage & Variable Speed ACs For those who are looking for something more efficient, two-stage and variable speed systems are worth considering. These units have fewer instances of cycling on and off, which allow you to enjoy: Lower energy bills. More effective humidity control.

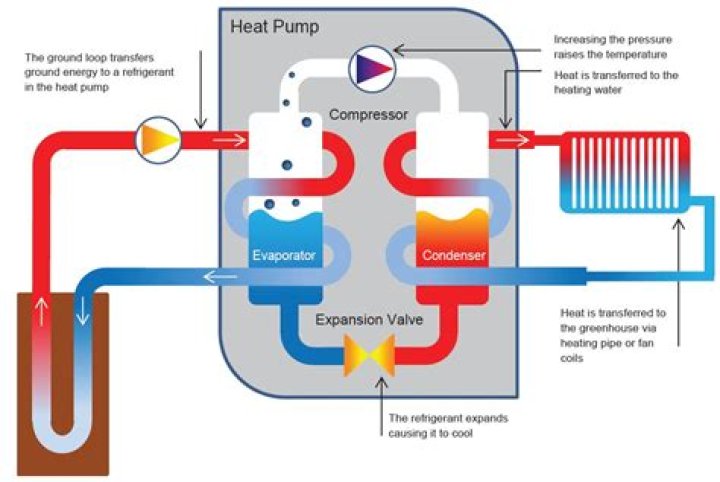

What are the four major working parts of a heat pump?

There are four important components of the heat pump: compressor, condenser, expansion valve and the evaporator.

Which terminal controls second stage heat on most heat pumps?

An addition to this terminal is a Y2 terminal for second stage cooling if the system is so equipped with 2 stage cooling. The W terminal controls the heating system. If you have a furnace or boiler then these appliances get there signal of 24 volt power from the W terminal in the thermostat.

When a compressor is changed the four way valve also must be changed?

When a compressor is changed, the 4-way valve also must be changed. True. TX valves used in air conditioning units and heat pumps are interchangeable as long as they are the same size and for the same refrigerant.

How does a 2 stage compressor work?

In a single stage compressor, the air is compressed once; in a two stage compressor, the air is compressed twice for double the pressure. By increasing the number of cylinder stages and pressure, these machines work more effectively with a faster recovery time, and can handle more tools at once.

When would a two stage air compressor be used?

For larger construction crews or applications that require large amounts of air over extended periods of time, two-stage compressors are the go-to option.

What terminal is responsible for the compressor?

W/B: The W/B terminal controls the heat relay or valve. When the thermostat calls for heat, a signal is sent to power up the furnace and the blower fan or the boiler, heating your home. Y1: The Y1 terminal is used for the compressor contact in a single-stage heat pump installation.

What is a 2 phase compressor?

What is a 2 Stage Air Compressor. The main difference between single and two stage compressors is the number of times the air gets compressed between the inlet valve and the tool nozzle. In a single stage compressor, the air is compressed once; in a two stage compressor, the air is compressed twice for double the pressure.

What is 2 stage heat?

A two-stage heat pump has a compressor which is capable of operating at a high and low speed, improving its ability to maintain the temperature in a home with greater precision. This type of HVAC system also offers the advantage of more economical heating and cooling.

What is a compressor pump?

A compressor pump is a device used to compress a gas, commonly preparing the gas to be used at high pressure. Found on air conditioning (AC) and refrigeration units, one of the most common types of compressor pump is used on air compressors.
