Is ECEF a Cartesian?

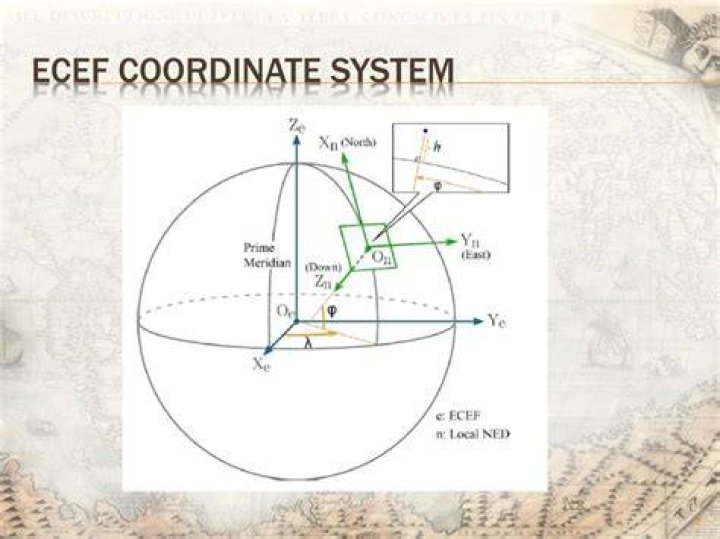

The Earth-centered, Earth-fixed coordinate system (acronym ECEF) is a geographic and Cartesian coordinate system (sometimes known as a “conventional terrestrial” system). The x-axis intersects the sphere of the earth at 0° latitude (the equator) and 0° longitude (the prime meridian which passes through Greenwich).

Is the Earth centered Earth fixed ECEF frame a coordinate frame fixed to the Earth itself an inertial reference frame Why or why not?

The earth-centered inertial (ECI) frame is a global reference frame that has its origin at the center of the Earth. This reference frame does not rotate with Earth and serves as an inertial reference frame for satellites orbiting the Earth. Due to this, the ECI frame is used primarily in space applications.

What is Earth centered?

An Earth-Centered, or geocentric datum uses the Earth’s center of mass as the origin point of the datum.

What is ECEF XYZ?

An XYZ Cartesian Earth Centered Earth Fixed (ECEF) Coordinate System is a coordinate system with the origin at the center of the Earth (as defined by a reference ellipsoid). The X-axis runs from the origin through a point on the equatorial plane at the zero meridian.

What is Ned coordinate system?

NED Coordinates The north-east-down (NED) system is a noninertial system with its origin fixed at the aircraft or spacecraft center of gravity. Its axes are oriented along the geodetic directions defined by the Earth surface. The x-axis points north parallel to the geoid surface, in the polar direction.

What do you mean by Earth fixed and earth centered reference system?

The Earth-Centered, Earth-Fixed (ECEF) coordinate system is also known as the “conventional terrestrial” coordinate system. It is a simple Cartesian coordinate system with the center of the earth at it’s origin. The +X axis passes through the Equator and Prime Meridian intersection.

Is ECEF a meter?

ECEF is a right-handed Cartesian coordinate system with the origin at the Earth’s center, and that is fixed with respect to the Earth (i.e., rotates along with the Earth). Units are in meters.

What is ENU frame?

In case of land vehicles like cars, tanks etc., which use the ENU-system (East-North-Up) as external reference (World frame), the vehicle’s (body’s) positive y- or pitch axis always points to its left, and the positive z- or yaw axis always points up.

What do you mean by Earth fixed and earth-centered reference system?

Which place is the center of the Earth?

Since Jerusalem was located near the middle of the known world of antiquity, it naturally occupied a central position on early world maps.

Which coordinates is Z in Minecraft?

o A distance Up from the origin is represented by a positive Y value, (+Y). o A distance Down from the origin is represented by a negative Y value, (-Y). The Z-coordinate represents a distance North or South of the origin, just like real world latitude values.

Is Z up or Y up?

However, different 3D tools may have different directions for the Y and Z axis. Some 3D tools are Y-Up, which means the Y axis is a vertical line; while the others are Z-Up, means the Z axis is a vertical line. iClone and 3DXchange are Z-Up based 3D tools.

What is the earth-centered Earth-fixed coordinate system?

The Earth-Centered, Earth-Fixed (ECEF) coordinate system is also known as the “conventional terrestrial” coordinate system. It is a simple Cartesian coordinate system with the center of the earth at it’s origin. The +X axis passes through the Equator and Prime Meridian intersection. The +Z axis passes through the North Pole.

What is the difference between equatorial plane and earth centered inertial system?

Due to forces that the Sun and Moon exert, Earth’s equatorial plane moves with respect to the celestial sphere. Earth rotates while the ECI coordinate system does not. Earth-centered inertial ( ECI) coordinate frames have their origins at the center of mass of Earth and are fixed with respect to the stars.

What are the cartesian points on the Earth?

Points on the Earth are usually specified in the spherical coordinate system. The spherical coordinates of an arbitrary cartesian point P (x, y, z) are: The latitude φ which is the angle between OP and the equator. The longitude λ which is the angle between the prime meridian and the meridian passing through OP.

What is the Cartesian coordinate system?

Cartesian Coordinate System The usual cartesian coordinate system associated with the Earth is specified as follows: The origin is the center of the Earth. The z-axis is the rotational axis.
