How much current does 1 HP motor draw?
Robert Harper How much current does 1 HP motor draw?

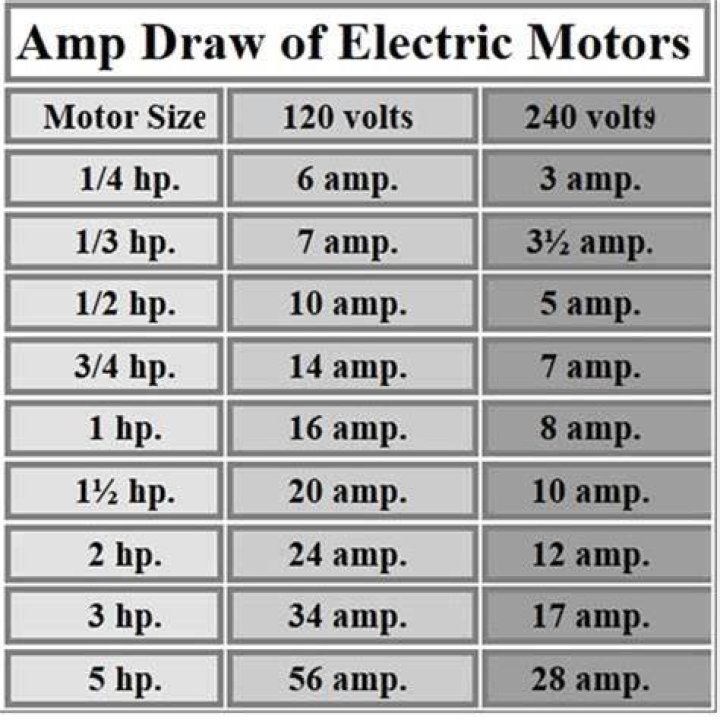

AMP DRAW BASED ON HORSEPOWER
| HP | 1 Phase Amps | |
|---|---|---|
| 115 volt | 230 volt | |
| 1/2 | 9.8 | 4.9 |
| 3/4 | 13.8 | 6.9 |
| 1 | 16 | 8 |
How much electricity does a 1 HP motor use?
So, 1 HP for 24 hour = 746×24= 17904 Watt-hour which is equal to 17904/1000= 17.904 units. Hence, 17.904 units of Power will be consumed by the 1 HP motor when run continuously for 24 hours.
What is the starting current of 1 HP single phase motor?
For single phase motors, NEC table 430-148 gives 230 Vac full load current of 8 amps for a 1 HP motor. Note, that a 1 HP motor not fully loaded (good practice) will show current draw of less than 8 amps.
How many amps does a 1 HP pump draw?
A 240 volt, 1 horsepower well pump draws 10 amps of current.
How do you calculate 1 HP motor current?
For a 1 HP 3phase induction motor draws a current =W /V, so 1 HP is equal to 746 watts, or rounded off to 750 watts, so it will be 750 /415 volts =1.7 amperes, approximately and at a powerfactor at unity means 1.
How many watts does a 1hp motor take?
746 Watts
The 1 HP motor consumes 746 Watts regardless of how many hours it is running. Watt and HP are not units of energy. It will consume in 1 hour. 746 KWH of energy.
How do you calculate current from HP?
How to Convert Horsepower to Amps
- Amps = (Horsepower × 746) ÷ Efficiency ÷ Volts.
- Watts = Horsepower × 746.
- Watts = Wattsη
- Amps = Watts ÷ Volts.
- Amps = HP × 746V × η × PF.
What does 1hp mean?
The horsepower (hp) is a unit in the foot-pound-second ( fps ) or English system, sometimes used to express the rate at which mechanical energy is expended. It was originally defined as 550 foot-pounds per second (ft-lb/s). A power level of 1 hp is approximately equivalent to 746 watt s (W) or 0.746 kilowatt s (kW).
How many amps does a 1 hp motor take?
Look at the table the 1 hp motor takes will be 1.3 A at 440 Volts three-phase at the same time while using single-phase it takes only 3.8 Amps. Also 5 HP three-phase motor takes 6.4 Amps.
What are the HP and full-load currents of single phase motors?
Single-Phase Motors – HP and Full-Load Currents Power Power Full Load Current (amp) Full Load Current (amp) Full Load Current (amp) 1 1/2 1.1 20 11 10 2 1.5 24 13.2 12 3 2.3 34 18.7 17 5 3.8 56 30.8 28
How much power does a 3 phase electric motor produce?
Three-Phase Motors – HP and Full-Load Currents 1 hp (English horse power) = 745.7 W = 0.746 kW = 550 ft lb/s = 2,545 Btu/h = 33.000 ft lb/m = 1.0139 metric horse power ~= 1.0 KVA Direct Current Motors – Power and Full Load Currents for 115V – the amps is twice the amps for 230V
What is the load capacity of a 1 hp motor?
For a 1 horsepower (hp) motor the load should typically be in the range 1/2 to 1 hp with maximum efficiency at 3/4 hp.
