How many pins are there in one digit seven segment display?
Sarah Parker How many pins are there in one digit seven segment display?
In this experiment, connect each of pin A-G of the 7-Segment Display to one 200 ohm current limiting resistor respectively and then to pin 4–11. GND connects to GND….Connection.
| 7-Segment Display | Osoyoo Uno Board |
|---|---|
| G | 9 |
| DP | 4 |
| Com | GND |
What is the use of IC 7446?
7446 is a BCD to 7 segment display driver IC with active low outputs. The IC is stand alone and requires no external components other than the LED current limiting resistors. All output of the IC have complete ripple blanking and requires no external driver transistors.
How many port pins are used to enable the seven segment display units?
8 pins
Each 7-segment display have 8 pins and so a total amount of 24 pins are to the connected to the microcontroller and there will be only 8 pins left with the microcontroller for other input output applications.
How many common pins are there in a 7 segment display?

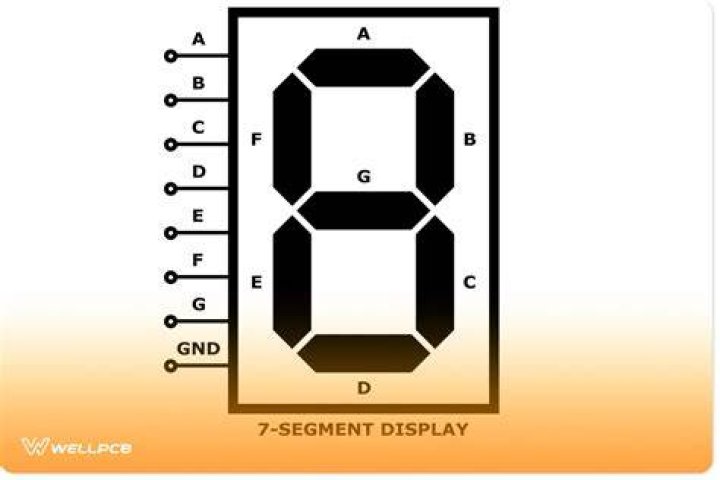

Out of 10 pins 8 are LED pins and these are left freely. 2 pins in middle are common pins and these are internally shorted. Depending on either the common pin is cathode or anode seven segment displays can be either named as common cathode or common anode display respectively.
How to display alphabetical characters on the 7 segment LED display?
The third block of code declares all pins on the arduino that the 7 segment LED display is hooked up to as output. The fourth block of code calls a function called showDigit () which is defined in the next block of code. This function shows the alphabetical characters on the 7 segment LED display.
What is a cc 7 segment display?
Common Cathode (CC) 7 Segment Display The common cathode display is commonly called CC display. In this type the common pin on the 7-segment display is connected to all the eight Cathode pins of the LEDs.
How to make a 7-segment LED display using Arduino?
So In order to make this type of 7-segment display work, we should connect the Com pin to the Vcc (+5V typically) and need to ground the required segment pin to turn it on (in simple words give a LOW signal from the Arduino pin to any segment of LED you want to turn it on and +5V to com pin).
