How is surface roughness defined?

Surface roughness is the measure of the finely spaced micro-irregularities on the surface texture which is composed of three components, namely roughness, waviness, and form.

What does surface roughness depend on?

Factors affecting the surface roughness include cutting edge geometry, accuracy, built-up edge, tool wear, machine tool accuracy, chip breaking properties and cutting conditions. These also differ according to the type of machining (external, internal, etc).

What is surface roughness used for?

Roughness plays an important role in determining how a real object will interact with its environment. In tribology, rough surfaces usually wear more quickly and have higher friction coefficients than smooth surfaces.

What is surface roughness and what are the sources of it?

Such factors include (i) quality of unmachined surface including surface roughness, cracks, voids, etc. (ii) homogeneity in work material, (iii) stick-slip motion of sliding parts in machine tool, (iv) eccentricity in workpiece or tool, (v) backlash in motion elements, (vi) tool tip modification, etc.

How do you calculate surface roughness?

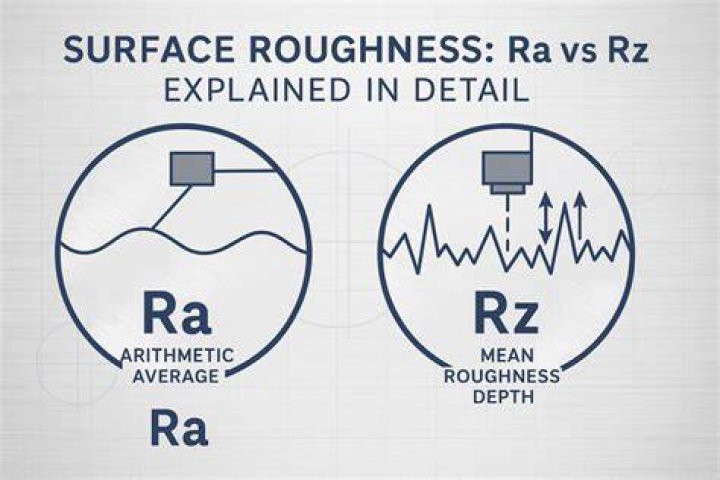

Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys. RMS is calculated as the Root Mean Square of a surfaces measured microscopic peaks and valleys.

Why surface roughness is important in engineering?

Surface roughness is a component of surface texture and plays an important role in determining how an object will interact with its environment. Roughness is a good indicator of the potential performance of a mechanical component, since irregularities on the surface may form nucleation sites for cracks or corrosion.

What is the surface roughness symbol?

Explanation: The surface roughness on a drawing is represented by inverted triangles. The basic symbol consists of two legs of unequal length inclined at approximately 60° to the line representing the considered surface.

What is the unit of surface roughness?

What are the units of Ra? Average roughness is typically measured in either microns (µm) or micro-inches (µ-in, µ”). One micron equals roughly 40 micro-inches (µ”). Also note that “micron” and “micrometer” are equivalent, and both terms are commonly used.

How do you test for surface roughness?

Roughness It is quantified by the deviations in the direction of the normal vector of a real surface from its ideal form. If these deviations are large, the surface is rough; if they are small, the surface is smooth.

What is meant by roughness *?

Definitions of roughness. a texture of a surface or edge that is not smooth but is irregular and uneven. synonyms: raggedness. Antonyms: smoothness. a texture without roughness; smooth to the touch.

Which of the following is necessary for the complete study of surface roughness?

Which of the following is necessary for the complete study of surface roughness? Explanation: For the complete study of the surface roughness, it is important that the analysis and measurement of all the component elements be made and an assessment of the effects of the combined texture be made. 4.

How much does surface roughness increase with increasing plasma exposure time?

It was found that the surface roughness was increased by approximately 15 times, from a virgin sample at the roughness of Ra =0.27 μm to a very rough surface with Ra =4 μm. The roughness increased with increasing plasma exposure time.

What are the effects of plasma treatment on the surface?

The effects of plasma treatment were observed by scanning electron microscope (SEM), electron microprobe (EMPA) and Talysurf. It was found that the surface roughness was increased by approximately 15 times, from a virgin sample at the roughness of Ra =0.27 μm to a very rough surface with Ra =4 μm.

Do high-density plasmas cause roughness during silicon etching?

The authors demonstrate unambiguously that high-density plasmas do not generate roughness during silicon etching; but on the contrary, they tend to smooth the existing surface roughness if already present.

Can We analyze the roughness of c-Si(100) surface in high-density plasmas?

The authors used atomic force microscopy to analyze the roughness generated on c-Si (100) surfaces when etched in high-density plasmas over a wide range of conditions (pressure, rf power) using SF6, CF4, Cl2, and HBr chemistries.
