How does the monostable 555 timer work?

The Monostable 555 Timer circuit triggers on a negative-going pulse applied to pin 2 and this trigger pulse must be much shorter than the output pulse width allowing time for the timing capacitor to charge and then discharge fully.

What is a monostable circuit?

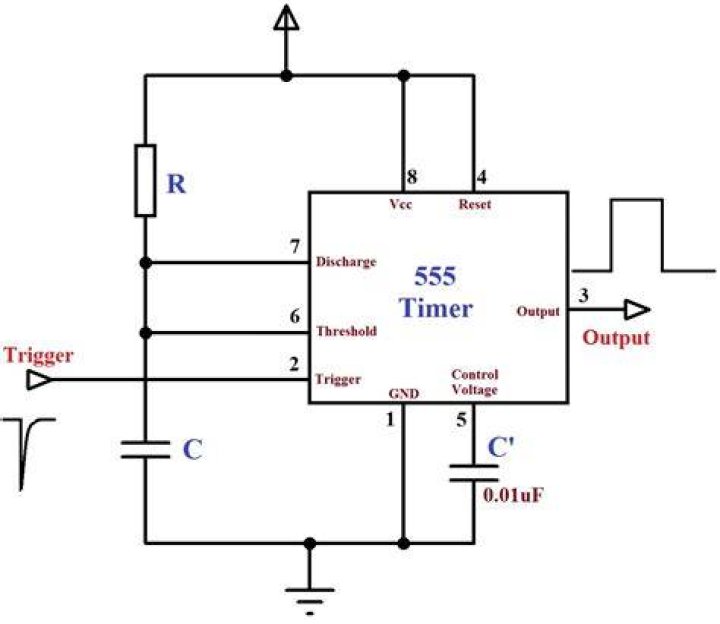

The 555 timer above is configured as a monostable circuit. This means that the output voltage becomes high for a set duration (T) when a falling edge is detected on pin 2 (trigger). The circuit above is also called a one-shot circuit. This calculator is designed to compute for the output pulse width of a 555 timer monostable circuit.

What is the minimum output time delay for a 555 timer?

A Monostable 555 Timer is required to produce a time delay within a circuit. If a 10uF timing capacitor is used, calculate the value of the resistor required to produce a minimum output time delay of 500ms.

How do you control the timing on a 555 circuit board?

– Control Voltage, This pin controls the timing of the 555 by overriding the 2/3Vcc level of the voltage divider network. By applying a voltage to this pin the width of the output signal can be varied independently of the RC timing network.

What is the threshold input on a 555 timer?

The threshold input (pin 6) is connected to ground to ensure that it cannot reset the bistable circuit as it would in a normal timing application. We could not finish this 555 Timer tutorial without discussing something about the switching and drive capabilities of the 555 timer or indeed the dual 556 Timer IC.

What is the power supply for a TTL 555 timer?

– Supply +Vcc, This is the power supply pin and for general purpose TTL 555 timers is between 4.5V and 15V. The 555 Timers name comes from the fact that there are three 5kΩ resistors connected together internally producing a voltage divider network between the supply voltage at pin 8 and ground at pin 1.

What are the comparators in a 555 timer?

The functional diagram of a 555 Timer IC consists of two comparators: an Upper Comparator (UC) and a Lower Comparator (LC). Recall that a comparator compares the two inputs that are applied to it and produces an output.
