How does Auger electron spectroscopy work?

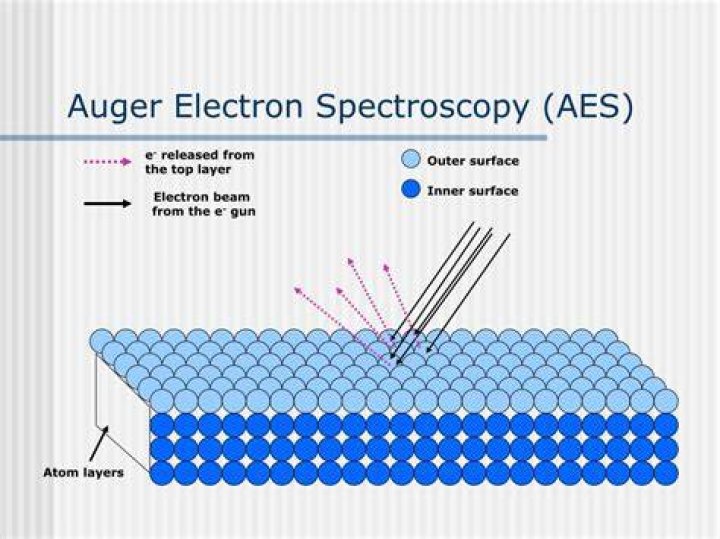

In Auger electron spectroscopy (AES), we bombard a sample surface with a focused beam of high-energy (2- to 10-kV) electrons. The incident electrons lose energy to the sample atoms, generating Auger electrons that have discrete kinetic energies characteristic of the emitting atoms.

What are Auger electrons in electron microscope?

Auger Electrons have a characteristic energy, unique to each element from which it was emitted from. These electrons are collected and sorted according to energy to give compositional information about the specimen.

How are Auger electrons emitted?

So-called Auger electrons are emitted when an electron beam hitting the surface creates electron holes in a lower shell (K, L or M) and when this hole is filled by an electron from a higher shell. The excess energy of this jump is transferred to another electron which is emitted.

What are the applications of Auger Electron Spectroscopy?

The applications of AES discussed herein are depth profiling of the chemical composition in the near-surface region, investigation of chemical environment of elements in surface regions, determination of changes in the chemistry of surface atoms, quantitative surface analysis, investigation of grain-boundary …

What is an Auger peak?

An Auger peak represents the kinetic energy of an auger electron which changes with the energy of primary xrays. Thus, auger peak will shift in apparent binding energy in xps spectrum when x ray source is changed.

What is Auger analysis?

Auger Analysis, Auger Electron Spectroscopy (AES or Auger) is a chemical surface analysis method. AES measures the chemical composition of the outermost 100 Å of a sample. Measurements can be made at greater depths by ion sputter etching to remove surface layers.

What is Auger effect in physics?

Auger effect, in atomic physics, a spontaneous process in which an atom with an electron vacancy in the innermost (K) shell readjusts itself to a more stable state by ejecting one or more electrons instead of radiating a single X-ray photon.

Who discovered Auger electrons?

Pierre Auger
Historically, the Auger effect was discovered independently in 1922 by L. Meitner [1], an Austrian physicist, and later in 1923 by Pierre Auger, a French physicist.

How is the specificity of Auger Electron Spectroscopy?

AES employs a beam of electrons as surface a probe. Only those electrons that emerge from the topmost atomic layers contribute to the spectrum so giving rise to the high surface specificity of this technique.

What are Auger peaks?

What is Auger generation?

Auger generation, also called impact ionization, occurs when a high-energy carrier collides with an electron in the valence band, resulting in the high-energy carrier losing much of its momentum and exciting the valence-band electron to the conduction band, creating an electron–hole pair.

Why Auger electron have low energy?

If electrons undergo inelastic scattering (i.e. collision processes with energy loss), the kinetic energies of the electrons will be less than that of the expected Auger electrons. Such electrons will become the background in the low kinetic energy side of the Auger peaks.

What is the kinetic energy of the Auger electron?

Upon ejection, the kinetic energy of the Auger electron corresponds to the difference between the energy of the initial electronic transition into the vacancy and the ionization energy for the electron shell from which the Auger electron was ejected.

What is electron spectroscopy?

Electron spectroscopy is an analytical technique to study the electronic structure and its dynamics in atoms and molecules. In general an excitation source such as x-rays, electrons or synchrotron radiation will eject an electron from an inner-shell orbital of an atom.
