How does a VFD affect power factor?
Robert Harper How does a VFD affect power factor?

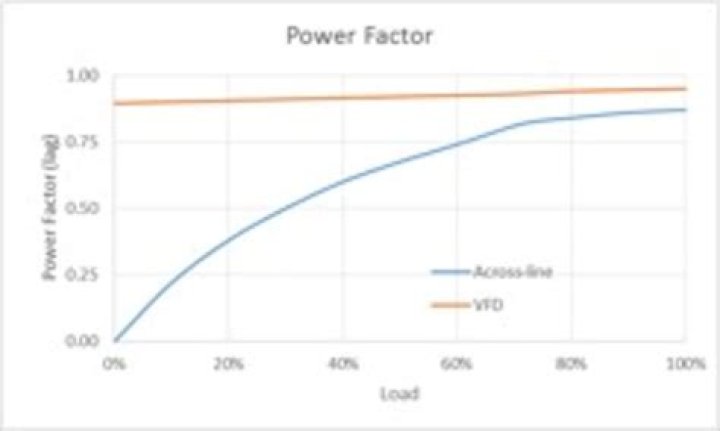

A variable frequency drive (VFD) will improve the system power factor to which it is connected, primarily because the motor reactive current is supplied by the DC bus, rather than the supply system. This will only improve the displacement power factor.
What is VFD power factor?
Power factor is a measurement of reactive power. Reactive power is the VA used to establish the magnetic field in a motor. For permanent magnet motor, most time you see pf being unity, which means all VAs are used to generate torque (minus the loss, of course).
How is VFD speed calculated?
The equation to calculate this is: The actual frequency divided by the potential frequency = X divided by the RPM on the machine nameplate….To reiterate, to calculate the RPM of a VFD, you need:
- The number on the VFD’s control panel.
- The standard cycle frequency.
- The RPM on the motor nameplate.
How is VFD power saving calculated?
EXAMPLE
- Step 1: 60 hp × 0.746 = 44.76 kw1
- Step 2: 0.28 ratio × 44.76 kw1 = 12.53 kw2
- Step 3: 0.88 ratio × 44.76 kw1 = 39.39 kw3
- Step 4: 39.39 kw3 – 12.53 kw2 = 26.86 kw4
- Step 5: 26.86 kw4 × 8,760 hr × $0.12 per kwh = $28,235 (annual savings)
Can VFD improve power factor?
VFDs can be used to improve system power factor when oversized motors or motors that operate at low power factor are used.
Does power factor change with load?
In an electric power system, a load with a low power factor draws more current than a load with a high power factor for the same amount of useful power transferred. Power-factor correction increases the power factor of a load, improving efficiency for the distribution system to which it is attached.
How low can a VFD run a motor?
Generally speaking, TEFC motors are not designed to operate at less than a 4:1 speed range, while some manufacturers make a 10:1 or 20:1 range motor. Most often, operating the motor slower than this requires an auxiliary cooling system.
Does VFD reduce power consumption?
VFDs save energy by enabling electric motors to operate at less than full speed. Reducing motor speed by 25% decreases energy consumption by nearly 60% while reducing motor speed by 50% decreases energy consumption by nearly 90%. Even with the 2% to 3% energy loss in the VFD, the energy savings can be very significant.
How much power does a VFD use?
Consider a VFD coupled to a motor that requires 16.4 kilowatts (kW) to deliver 20 shaft hp to an exhaust fan when operated at its full rated speed. At half its rated operating speed, the fan delivers 50% of its rated airflow but requires only 1/8 full-load power.
Does VFD reduce power?
What are the advantages of a VFD?
•Energy savings using a VFD to control the speed of a constant torque load is a direct function of speed reduction. Variable Torque Loads • Require much lower torque & horsepower at low speeds than at high speeds. • Power required varies as the cube of the speed.
Why use a variable torque load (VFD)?
•Energy savings using a VFD to control the speed of a constant torque load is a direct function of speed reduction. Variable Torque Loads • Require much lower torque & horsepower at low speeds than at high speeds. • Power required varies as the cube of the speed. • Examples: – Centrifugal fans, pumps & compressors, mixers and agitators. 10
Do VFD’s with constant horsepower loads save energy?
– Since the power required remains the same regardless of torque or speed requirements of the operation, there are no direct energy savings from installing VFD’s with constant horsepower loads. 11 Constant Horsepower Loads
How can I determine the power output from a VFD?
You can not accurately determine the output mechanical power from the motor using the method that you propose. If the VFD provides a torque display, that is likely to be more accurate than any determination made by measuring motor current. A power determination using DC bus current of the VFD might also be more accurate.
