How does a switching regulator work?

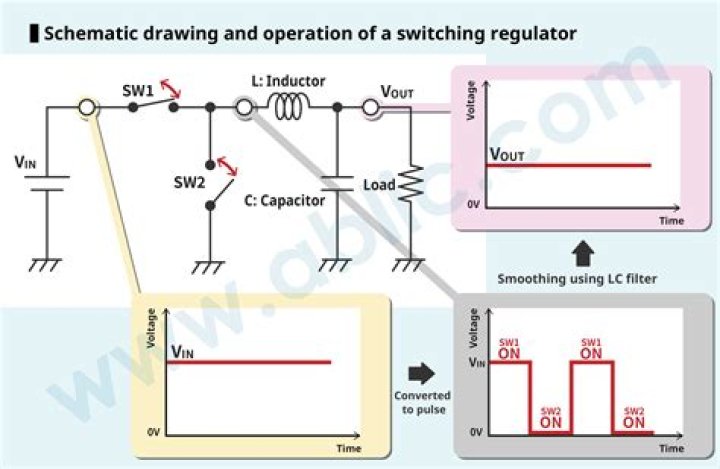

Operation of a step-down switching regulator

1. Compares the output voltage with the reference voltage to determine if the former is equal to a set voltage.
2. If the output voltage is lower than the set voltage, the switch is turned on, supplying power from the input to the output.

What are the four basic types of switching mode regulator?

This paper will detail the operating principles of the four most commonly used switching converter types: Buck— used to reduce a DC voltage to a lower DC voltage. Boost— provides an output voltage that is higher than the input. Buck-Boost (invert)—an output voltage that is generated opposite in polarity to the input.

How does a buck switching regulator work?

The Buck switching regulator is a type of switch mode power supply circuit that is designed to efficiently reduce DC voltage from a higher voltage to a lower one, that is it subtracts or “Bucks” the supply voltage, thereby reducing the voltage available at the output terminals without changing the polarity.

How do you calculate the efficiency of a switching regulator?

Efficiency can be calculated by dividing the output power by the input power. So if the output power is the same as the input power then efficiency is 100% and the regulator wastes no power. This is the ideal, but unattainable scenario. Most switching regulators have an efficiency between 80-90%.

What is step down DC?

A buck converter (step-down converter) is a DC-to-DC power converter which steps down voltage (while drawing less average current) from its input (supply) to its output (load).

What is the difference between LDO and switching regulator?

LDOs are low-noise alternatives to switching regulators. They are simpler to layout and tend to cost less. LDOs are sometimes used downstream from a switching regulator to further step down the voltage to a low level. In fact, some switching regulator components include an LDO on the output; see ADP5037 for an example.

What is the best DC to DC converter?

Let’s take a look at the top 10 DC/DC converters on SnapEDA!

• #10-LM2576D2TR4-5G by ON Semiconductor.
• #9-R1SE-0505-R by Recom Power.
• #8-TSRN 1-2433 by Traco Power.
• #3-LT8640EUDC#PBF by Linear Technology.
• #2-LTC3114EFE-1#PBF by Linear Technology.

What is a switching regulator and how does it work?

A switching regulator can easily power heavy loads from a high voltage, and save you from splurging on an additional battery pack. Certain kinds of switching regulators can also step up voltage.

What type of IC is used for a switching regulator?

Normally, an integrated circuit, or IC, is used for a switching regulator. It contains the switch and the PWM controller. An example is the LM3671 Buck Converter from Texas Instruments. LM3671 Simplified Schematic

What is the difference between switching losses and linear voltage regulators?

In reality, these all burn a little bit of power, which is known as switching losses. However, compared to a linear voltage regulator, this switching circuit is much more efficient. Unlike linear regulators, switching regulators can create output voltages higher than their input. These are called boost converters.

What are the different types of voltage regulators?

There are two major types of Voltage Regulators: Linear and Switching. For a higher level introduction, check out my earlier Voltage Regulator Tutorial. Linear regulators only need a small number of components, are simple to add to a board, but are not very efficient.
