How do you use a sparkfun motor driver?
Sophia Dalton How do you use a sparkfun motor driver?

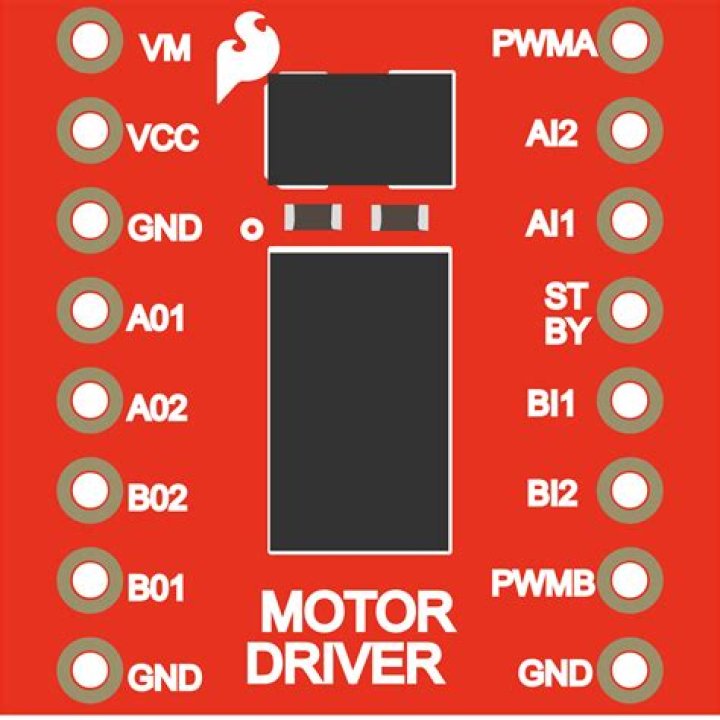

To use the driver board, you pull the standby pin HIGH. If you are not using the board and want to conserve power, you can push the pin LOW, and the motors won’t run. You can control up to two motors with a single driver board. The pin names are printed on the bottom of the controller board.
What is dual motor driver?
This is a ready to use dual H bridge module for controlling 2 DC motors with 5 Amp capacity each or a Stepper motor at max. 5 amp/phase. These motor drivers can be used to control any small to big motors. It can be directly connected to 4 microcontroller pins to control 2 DC motor or a Stepper motor in Bipolar mode.
What is tb6612?
TB6612FNG is a driver IC for DC motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
What is VM in motor driver?
VMS: VMS is the 5V-35V power source for motor. VMS is positive, GND is negtive. 5V: Power input for the logic circuit on the board. 5V-EN: 5V source jumper. When the jumper is put on, The 78M05 supplies the 5V power for logic circuit on the board from the VMS port(7V < VMS < 18V).
Can one speed controller run two hub motors?
They are both rear drive and exactly the same.. If you bolt two hubs together so each move together yes but you would need a bigger controller and maybe a dual pack to make it practical. One hub at 30 amps should be as good as two hubs at 15 amps so you don’t need to overload the battery.
What does MCC mean in electrical terms?
motor control center
A motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect.
How do I power Arduino with L298N?
5V pin supplies power for the switching logic circuitry inside L298N IC. If the 5V-EN jumper is in place, this pin acts as an output and can be used to power up your Arduino. If the 5V-EN jumper is removed, you need to connect it to the 5V pin on Arduino. ENA pins are used to control speed of Motor A.
What is ENB ENA?
ENA and ENB are used to turn the motors ON, OFF and control its speed. Pulling these pins HIGH will make the motors spin, pulling it LOW will make them stop. But, with Pulse Width Modulation (PWM), we can actually control the speed of the motors. The module usually comes with a jumper on these pins.
What is L298N driver?
The L298N is a dual H-Bridge motor driver which allows speed and direction control of two DC motors at the same time. The module can drive DC motors that have voltages between 5 and 35V, with a peak current up to 2A. Let’s take a closer look at the pinout of L298N module and explain how it works.
