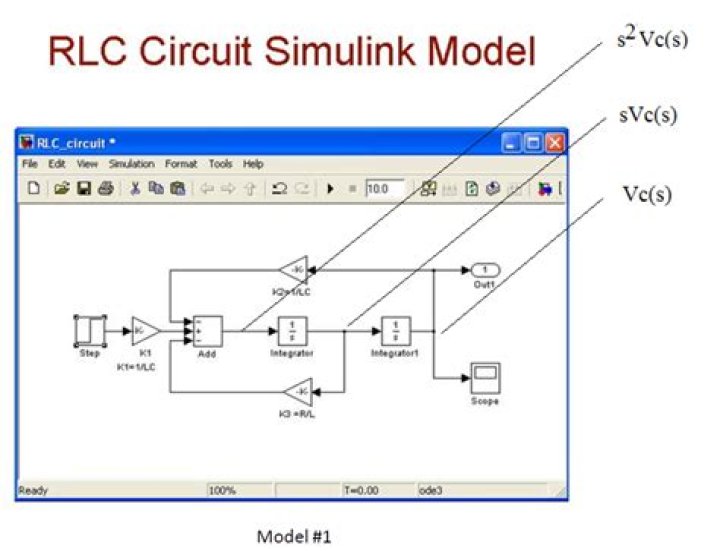

How do you simulate an RLC circuit in MATLAB?

To simulate your model from the command prompt or a script, use the command sim(‘RLC’). Consult the MATLAB documentation of sim on how to pass additional simulation and configuration parameters to the model. You can use the Scope block to show the value of any signal in your model.

How does MATLAB solve RLC circuits?

solving rlc circuit using ode45

1. function RLC=homework(t,x)
2. R1=20;R2=30;L1=4*10^-3;L2=2*10^-3;C=0.004;u=100;
3. RLC(1)=(R1/L1)*(x(1))+(1/L1)*(x(2))-(1/L1)*u;
4. RLC(2)=-(R2/L2)*(x(2))+(1/L2)*(x(3));
5. RLC(3)=(-1/C)*(x(1))-(1/C)*(x(2));
6. RLC=RLC’;

How do you calculate RLC circuit?

Series RLC Circuit

1. i(t) = Imax sin(ωt)
2. The instantaneous voltage across a pure resistor, VR is “in-phase” with current.
3. The instantaneous voltage across a pure inductor, VL “leads” the current by 90.
4. The instantaneous voltage across a pure capacitor, VC “lags” the current by 90.

What is the difference between Simulink and MATLAB?

Simulink is graphical and more interactive to the user. Whereas the Matlab is coding based approach based on the different function available in Matlab.

How to solve RLC circuits using Simulink?

How to solve RLC Circuits using Simulink. Again click on the search button and then click on the search icon. Select the series RLC branch as I have selected in the above figure and double click on it to place the component on the Simulink window. This branch can be converted to any of the three components or any combinations…

How to create RLC branches in Simulink?

In the search bar thus appeared write rlc and a number of rlc branches will appear as shown in the figure below, Select the series RLC branch as I have selected in the above figure and double click on it to place the component on the Simulink window. The series RLC branch when placed is shown in the figure below,

How do I use implicit state space in Simulink?

In Implicit State-Space Form. Model the system in Simulink with , , to find the voltage across the resistor . To use the Descriptor State-Space block, the system can be written in the implicit, or descriptor, state-space form as shown below. where is the state vector. Set since the voltage across the resistor is being measured.

How do I convert a series RLC branch to a resistor branch?

Double click on the first RLC branch and a parameters window will appear. There will be a menu to select which combination of all the three components you want to place on your simulink window. From that menu select R to convert the series RLC branch to a resistor branch as shown in the figure below,
