How do you read a Fender pot code?

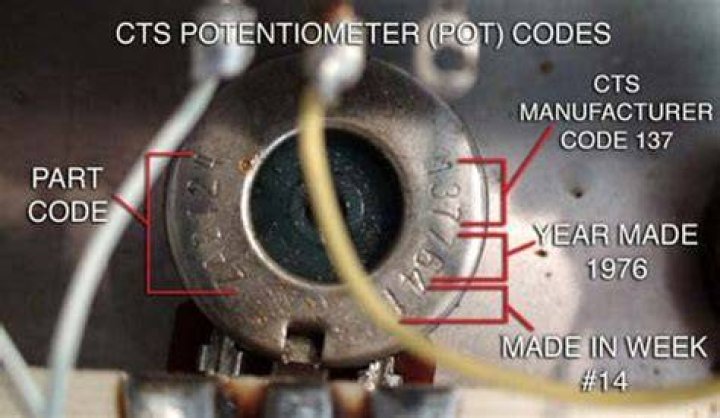

The first 3 digits on a pot are the manufacturer code. The last 3 or 4 digits are the date code. With 3 digits, the first digit is the last digit of the year, and the last digit is the week number. With 4 digits, the first 2 digits are the last 2 digits of the year.

How do I identify a guitar pot?

Guitar Pots Explained

1. Guitar pots are used to affect and control volume and tone.
2. Mini Pots are recognized by their case (body) which is about the diameter of a dime.
3. Full Size Pots are recognized by their case (body) which is about the diameter of a quarter.
4. Linear Pots increase/decrease signals in a linear fashion.

Did Fender use centralab pots?

American pot manufacturers had their own numerical EIA (Electronic Industries Alliance) codes, for example 134 = Centralab, 137 = CTS and 304 = Stackpole. Although many others were used, these are by far the most important, as they were widely used by the likes of Gibson, Fender, Guild and Epiphone.

How can you tell if a pot is CTS?

Newer pots are now stamped with CTS, but older pots will be stamped with 137, which is the code designated for CTS pots.

Is there a difference between tone and volume pots?

Tone pot vs. People often ask “what’s the difference between a tone pot and volume pot?” The only difference between a tone pot and a volume pot is whether there is a capacitor attached. Since a potentiometer is a resistor, putting a cap between the pot and ground turns it into an EQ.

What pots does fender use?

Most Fender-type guitars use split-shaft pots, meaning the shaft of the control has a slit down the middle. That will let you squeeze the Fender Stratocaster style knob onto them. But some guitar controls have a little grub screw on the side and these need a solid shaft post, as that grub screw needs to grip tight.

How can you tell if a pot is taper?

If there’s no marking on the pot, turn it to roughly half-way then measure the resistance between the wiper and each end. If they’re close, then it’s linear. If they’re substantially different, then it’s audio/log taper.

What potentiometer do I need?

A potentiometer does you no good if it covers a range of zero ohms to 100 ohms but you need it to operate up to 1000 ohms. Conversely, if you need to make adjustments of 10 ohms, you’ll find a range of 1,000 ohms too coarse to adjust. Make sure your potentiometer is rated for your circuit’s current and voltage.

What are the four types of potentiometers?

The Potentiometer or POT is manufactured by using different types of materials like carbon composition, cermet, metal film, and conductive plastic. The Potentiometers are classified into three types based on their working, as Rotary potentiometer, Linear potentiometer, and Digital potentiometer.

How do I find out what year my Fender amp is?

EIA code on the back or side of the potentiometer. Sometimes there is a space or dash between the manufacturer code and the year/week code. manufacturer it was made. Fender amps. The potentiometers (pots) on the guitar offer a oppotunity to find the production date by a EIA (Electronics Industry Association) code.

What amplifiers are compatible with the Fender® potentiometer set?

Fender® Potentiometer Set for the following amplifiers ONLY: Bandmaster Amp AA763, Bandmaster Amp AB763, Bandmaster Amp AD1269, Deluxe Amp AB763, Pro Amp AA763, Pro Amp AB763, Tremolux Amp AA763, Tremolux Amp AB763, Vibrolux Amp AA763, Vibrolux Amp AB763.

What does the sticker on a Fender amp mean?

Fender amps. On the inside of the cabinets of Fender amplifiers that were built after 1950 and before 1970, a sticker is generally attached. This indicates the type of the tubes used and their location on the chassis.

What are pot codes and how do you date a guitar?

If you’ve been reading articles about dating a vintage guitar, you may well have come across mention of pot codes, and the concept of using pot codes to date your guitar. The pots, or potentiometers to give their full name, are the variable resistors that control volume and tone.
