How do you print dimensions in AutoCAD?

Most recent answer

1. Create your model in model space with 1:1 scale.
2. in plot space (Ctrl+p) choose proper paper and select your printer. in scale choose 1:1 instead of fit to paper.
3. select window and select your model.
4. print.

How do I get the DIA symbol in AutoCAD?

Using the Symbol Menu Simply place the cursor where you want the symbol to appear and then select Diameter the Symbol flyout on the Text Editor ribbon tab or right-click menu. It’s just THAT easy!

How do you make symbols in AutoCAD?

Symbols can be inserted in text using one of the following methods:

1. In the In-Place Text Editor, right-click and click Symbol.
2. On the expanded Text Formatting toolbar, click Symbol.
3. Copy and paste from the Character Map.
4. Enter the control code or Unicode string. Note: Precede the Unicode string with a backslash ( \ ).

How do I print a4 size in AutoCAD?

Click the layout tab for which you want to set the plot scale to Fit to Paper. In the Page Setup Manager, Page Setups area, select the page setup that you want to modify. Click Modify. In the Page Setup dialog box, Under Plot Scale, select Fit to Paper.

Why is AutoCAD not showing dimensions?

But most likely the missing dimensions is because the dimension is using annotative style. The dimensions don’t have the active scale in the dimension scale list. Now select the dimension, and check the scale list in properties palette. In opened dialog box, check if the annotation scale is listed.

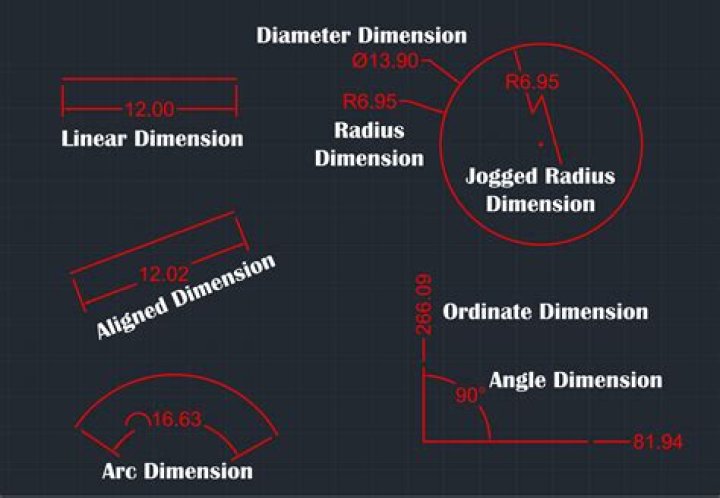

How do you dimension diameter in Autocad?

Create a Radius or Diameter Dimension

1. Click Annotate tab Dimensions panel Dimension.
2. Select an arc or a circle.
3. At the prompt, enter r (Radius) or enter d (Diameter).
4. Before specifying the dimension line location, you can edit or rotate the text.
5. Click to place the dimension line.

How do you make a squared symbol in AutoCAD?

How do I import symbols into AutoCAD?

To Import the Symbol Libraries From Another Drawing (AutoCAD Mechanical Toolset)

1. Select the Custom import option.
2. Select the Symbol libraries check box and click Next.
3. Select the standards you want to import the symbol libraries for and click Next.
4. Select the Symbol Libraries you want to import.

What does the diameter symbol mean in AutoCAD?

The diameter symbol is one of the most commonly used symbols in AutoCAD drawings. It’s automatically added to diameter dimensions but there may be times you want to include it in other types of dimensions as well as leaders, tables, and notes.

How to add symbols in AutoCAD drawing?

One of the easiest ways to add the diameter and other popular symbols to your AutoCAD drawing is to select the Text Editor ribbon tab or right-click menu.

How to set precision in AutoCAD?

Solution: Open the Dimension Style Manager using DIMSTY Select the dimension style in use Select Modify Navigate to the Primary Units tab Set Unit Format to Decimal Set the Precision to be displayed. For whole inches, set the Precision to 0. In the Suffix box, add the inch symbol (“). Press OK Press

How do I set up dimensions and precision in the drawing?

The drawing is set up in inches and dimensions need to be set up in inches only (not in feet). For example, when set to Architectural, it would show 1′-6″ but the dimension needs to read 18″. Set the Precision to be displayed. For whole inches, set the Precision to 0. In the Suffix box, add the inch symbol (“).
